Name: XUNNUO Customized Fill Valve Diaphragm Automatic Assembly Machine
Availability: InStock

XUNNUO Customized Fill Valve Diaphragm Automatic Assembly Machine

Application :

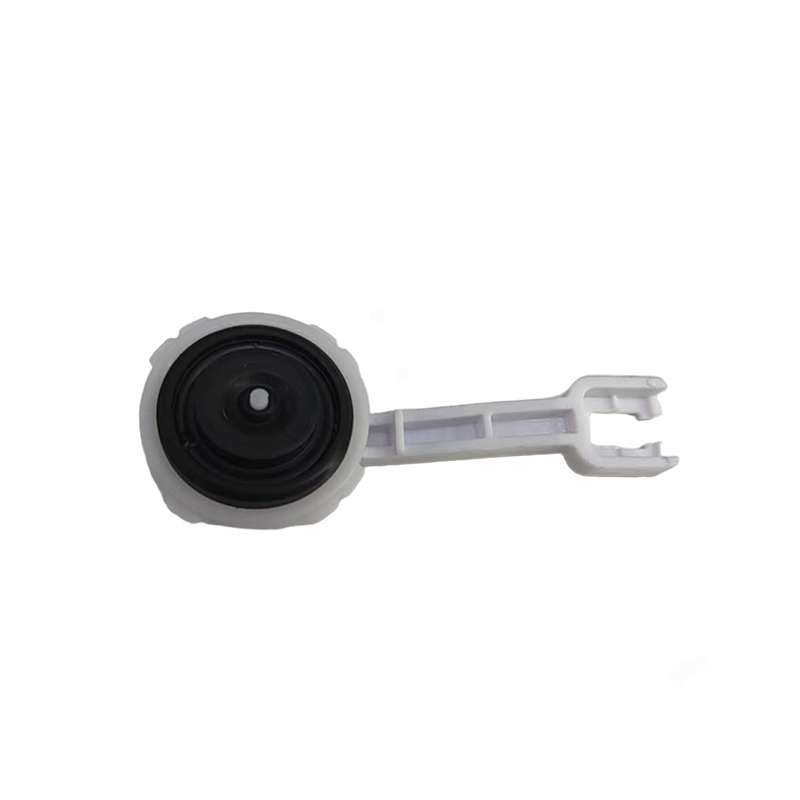

Toilet inlet valve seal assembly
Efficiency :
800 PCS/H
Control System :
PLC (Multiple brands available)
Operator :
1 Person (Refill the material)
Customizable :
We provide customized assembly and testing equipment for various toilet tank components, including flush valves, fill valves, push buttons and more

Inquiry Now

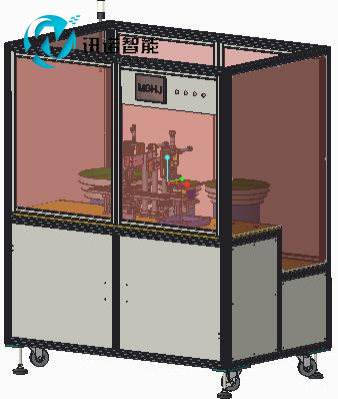

Machine 3D Drawing

Machine Description:

Machine Working Process:

1. Lifting Rod Loading: The lifting rod components are automatically fed into the system via a precision vibratory bowl feeder, ensuring consistent and continuous material supply.
2. Lifting Rod Inspection: The system performs a visual or mechanical inspection to verify the presence and quality of the lifting rod, rejecting any defective parts before assembly.
3. Rubber Washer Loading: Rubber washers are individually fed and positioned, ready for assembly onto the lifting rod.
4. Rubber Washer Assembly: Pneumatic slides and grippers precisely press-fit the rubber washer onto the lifting rod, ensuring proper seating and alignment.
5. Rubber Washer Inspection: The assembled rubber washer is checked for correct installation, position, and integrity to prevent leaks or assembly failures.
6. Connecting Rod Loading: Connecting rod components are fed into the assembly station, ready to be joined with the lifting rod assembly.
7. Connecting Rod Assembly: The connecting rod is automatically attached to the lifting rod and washer assembly using precision assembly mechanisms.
8. Connecting Rod Inspection: A final check verifies the complete assembly, ensuring all components are correctly fitted and functional.
9. Finished Product Unloading: Qualified finished assemblies are automatically unloaded from the line, while any remaining defective products are rejected.

Machine Parameter:

Parameter	Specification
Overall Dimensions	1600 × 1000 × 1800 mm
Noise Level	Operating noise < 85 dB (excluding vibratory feeder)
Power Supply	Voltage: 220 V; Power: 1.3 kW
Air Supply	Pressure: ≥ 0.5 MPa; Air consumption: ≈ 80 L/min
Production Efficiency	800 pcs/h (pieces per hour)
