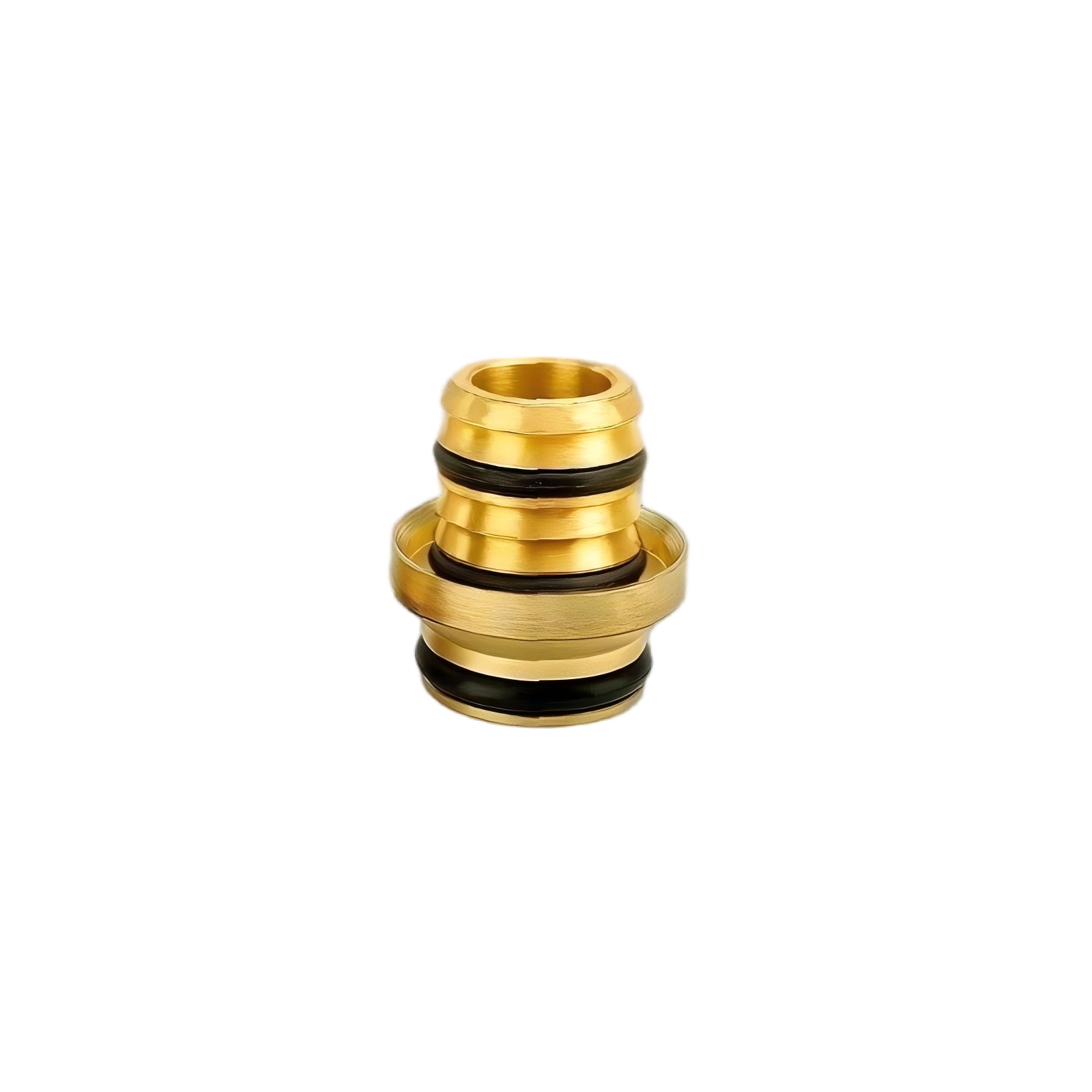

Xunnuo dual-station O-ring assembly machine adopts a manual-assisted automatic mode, featuring outstanding flexibility and wide compatibility. It effectively reduces manual difficulty in O-ring sleeving work. Compatible with various O-ring sizes and diverse product shapes, it perfectly fits special-shaped parts and is highly friendly for multi-specification and small-batch production. With high operating efficiency, it greatly boosts productivity and cuts labor costs. Its compact structure lowers transportation volume and logistics expenses. Intelligent PLC control ensures stable, precise assembly, covering nearly all conventional O-ring assembly application scenarios. Annual sales volume reaches 1000 units.
Application/Function :
O ring AssemblyEfficiency :
1800 Pcs/HourControl System :
PLC (Optional Brands Available)Operator :
One personCustomizable :
We provide customized assembly and testing machines for O-rings in all sizes, including miniature O-rings

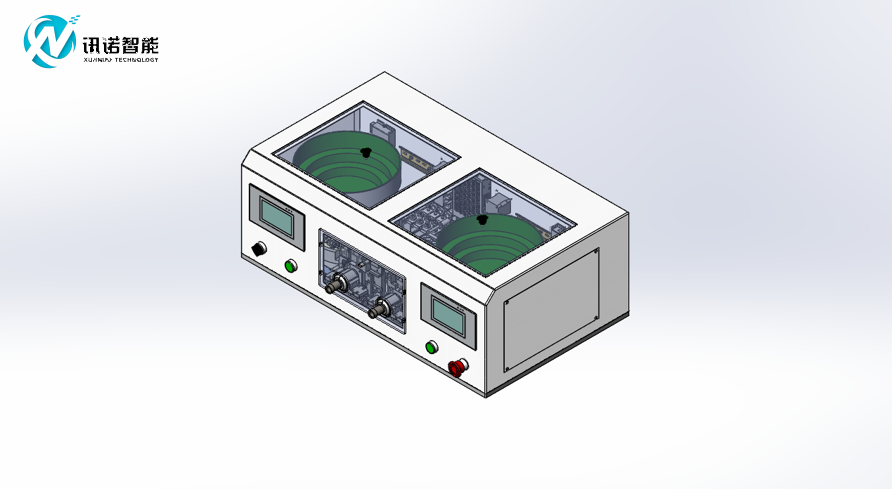

Machine 3D Drawing

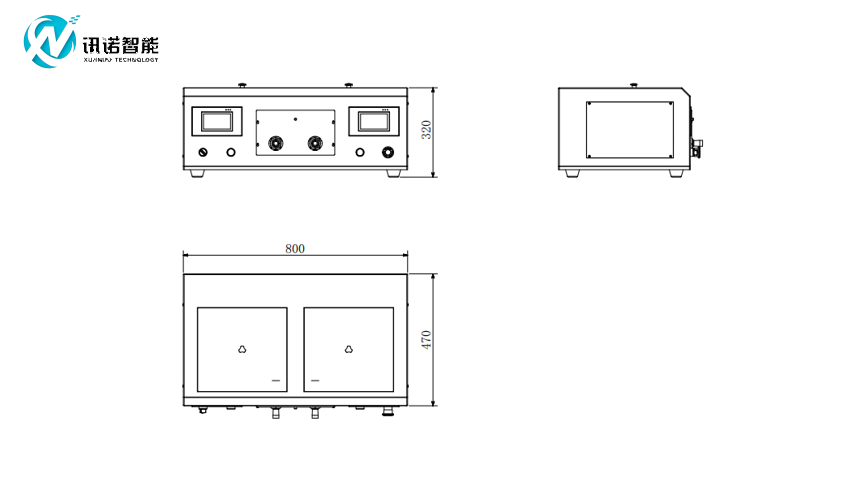

Machine Dimension
1. Feeding Preparation: Sort workpieces and place them nearby; pour O-rings into the vibratory bowl and check the discharge channel for smoothness.
2. Manual Operation: Place workpieces on the positioning fixtures of both stations, which automatically clamp to ensure accurate O-ring installation.
3. Automatic Feeding: The vibratory bowl sorts and transports O-rings to the two stations automatically, replacing manual sorting and ensuring stability.
4. Automatic Assembly: Press the start button to start automatic assembly: pick up O-rings, expand them, coat oil (optional and adjustable via touch screen), install into workpieces, and reset.
5. Finished Product Retrieval: Fixtures release after assembly; take finished products and place new workpieces for continuous operation.
Core Features:
1. High Efficiency: Two independent stations, no-load efficiency 20 times/min (10 times/min for single station), actual 30-40 pieces/min, nearly doubling production capacity.
2. Flexible Oil Coating: Built-in spray module, on/off and oil amount adjustable via touch screen, reducing friction and improving sealing performance.
3. Intelligent Control: Industrial PLC + Chinese touch screen, easy to operate, supporting parameter adjustment, production counting and fault alarm.
4. Wide Adaptability: Fits different size O-rings, customizable fixtures and mechanisms for different products.
5. Compact & Stable: Size 800×470×320 mm (with vibratory bowl), durable and space-saving.
6. Safety Protection: Equipped with emergency stop button and protective baffle to avoid accidents.
|
Parameter Name
|
Specific Specifications
|
Remarks
|
|
Overall Dimension
|
800 x 470 x 320 mm
|
Including vibratory bowl, subject to physical product
|
|
Working Power Supply
|
AC 220V/50 Hz
|
Customized
|
|
Air Supply Requirement
|
＞ 0.5 MPa
|
Dry, impurity-free workshop air
|
|
Operation Efficiency
|
No-load: 20 times/min; Actual: 30-40 pieces/min
|
Depends on workpiece and operator
|
|
Control Method
|
PLC + Touch screen (Language is optional)
|
Parameter adjustment, counting, alarm
|
|
Oil Coating Function
|
Optional, adjustable amount
|
Precision spray, for sealing needs
|
|
Applicable O-rings
|
Diameter ≥3 mm
|
Customizable
|
|
Number of Stations
|
Double stations
|
Simultaneous/alternate operation
|
|
Noise
|
≤85 dB
|
Meets workshop standards
|
| No. | Name | Brand |
|---|---|---|
| 1 | Operation Interface |
Weiluntong / Weikong (Optional) |
| 2 | Pneumatic Components | Airtac |
| 3 | Linear Guide Rail | Airtac |
| 4 | Sensors | Panasonic / JARO |
Xunnuo dual-station O-ring assembly machine adopts a manual-assisted automatic mode, featuring outstanding flexibility and wide compatibility. It effectively reduces manual difficulty in O-ring sleeving work. Compatible with various O-ring sizes and diverse product shapes, it perfectly fits special-shaped parts and is highly friendly for multi-specification and small-batch production. With high operating efficiency, it greatly boosts productivity and cuts labor costs. Its compact structure lowers transportation volume and logistics expenses. Intelligent PLC control ensures stable, precise assembly, covering nearly all conventional O-ring assembly application scenarios. Annual sales volume reaches 1000 units.
Xunnuo single-station O-ring assembly machine applies a manual-assisted automatic working mode with great flexibility and wide applicability. It effectively simplifies manual O-ring sleeving operations and adapts to various O-ring sizes and common product shapes, ideal for multi-specification and small-batch production. Equipped with a vibrating plate automatic feeding system and a switchable built-in oil coating function, it ensures convenient and efficient processing. Adopting stable PLC intelligent control and touch screen operation, this compact device delivers precise assembly, improves production efficiency, reduces labor costs, and covers most conventional O-ring assembly scenarios. Annual sales volume reaches 1000 units.
Xunnuo automatic Y - Ring machine realizes automatic feeding of water stop shafts and micro-rings via vibration plates. It is controlled by PLC and operated through a touch screen for simple and stable use. The assembly structure adopts high-precision pneumatic slides and grippers. A vision system conducts 100% full inspection on micro-rings to check direction and flanging defects, which is the core technical highlight. Every finished assembly will be tested, and defective products will be automatically rejected to ensure qualified output.
This Automatic O-Ring Fitting Machine is designed for efficient assembly of water distributors. Controlled by PLC and operated via a touchscreen, it ensures user-friendly and reliable performance. Its assembly mechanism uses high-precision pneumatic components like slides and grippers. After each process, the machine automatically checks if the O-ring is properly fitted and rejects defective parts. It delivers consistent quality, reduces labor costs, and improves production efficiency, making it ideal for high-volume plumbing and valve manufacturing.
