Name: Automatic Shower Slider Assembly Line
Availability: InStock

Automatic Shower Slider Assembly Line

Automatic slide assembly machine controlled by PLC with HMI for simple operation
Equipped with 4-axis manipulators, servo modules and pneumatic grippers to realize precise assembly
Fitted with precision vibratory feeder for automatic material feeding
Integrated post-assembly inspection function with automatic defective product rejection
Configured with 2 sets of Delta 4-axis manipulators
Installed with 6 sets of Panasonic / Hikvision vision positioning systems
Delivers stable running performance and consistent assembly quality
Machine dimension: 8000×1800×1800 mm
Working power supply: 220V
Required air pressure: ≥0.5 MPa
Production capacity: 400–500 pieces per hour
Operating noise: below 85 dB (vibratory feeder excluded)

Application :
Slide Assembling
Efficiency :
400-500 PSC/H
Control System :
PLC (Multiple brands available)
Operator :
One operator for multiple machines
Customizable :
We offer customized assembly machines for various shower wall brackets, sliding holders and fixed bases

Inquiry Now

Machine Work Flow:

Machine Parameters:

No.	Item	Specification
1	1. Overall Dimensions	8000 × 1800 × 1800 mm
2	2. Noise Level	Working noise < 85 dB (excluding the vibratory feeder)
3	3. Power Supply	220 V
4	4. Air Supply	Air pressure ≥ 0.5 MPa
5	5. Equipment Efficiency	400–500 pcs/h

Machine Advantages:

High Precision & Stable Assembly
Equipped with 4-axis manipulators, high-precision servo modules, and 6 sets of vision systems (Panasonic/Hikvision), the machine ensures accurate alignment and consistent assembly quality for each component.
Full In-Process Inspection & Defect Rejection

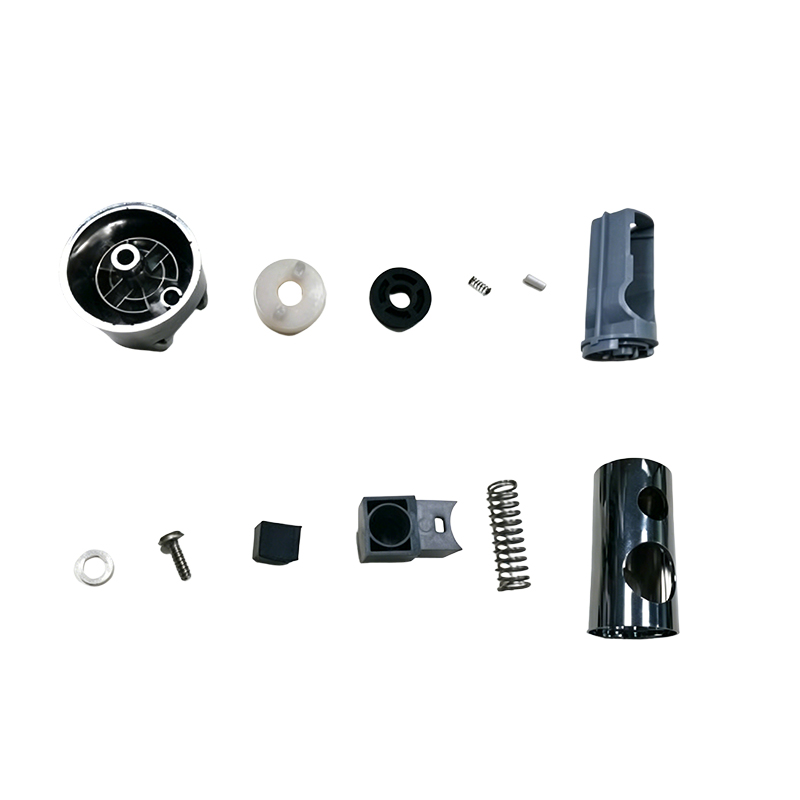

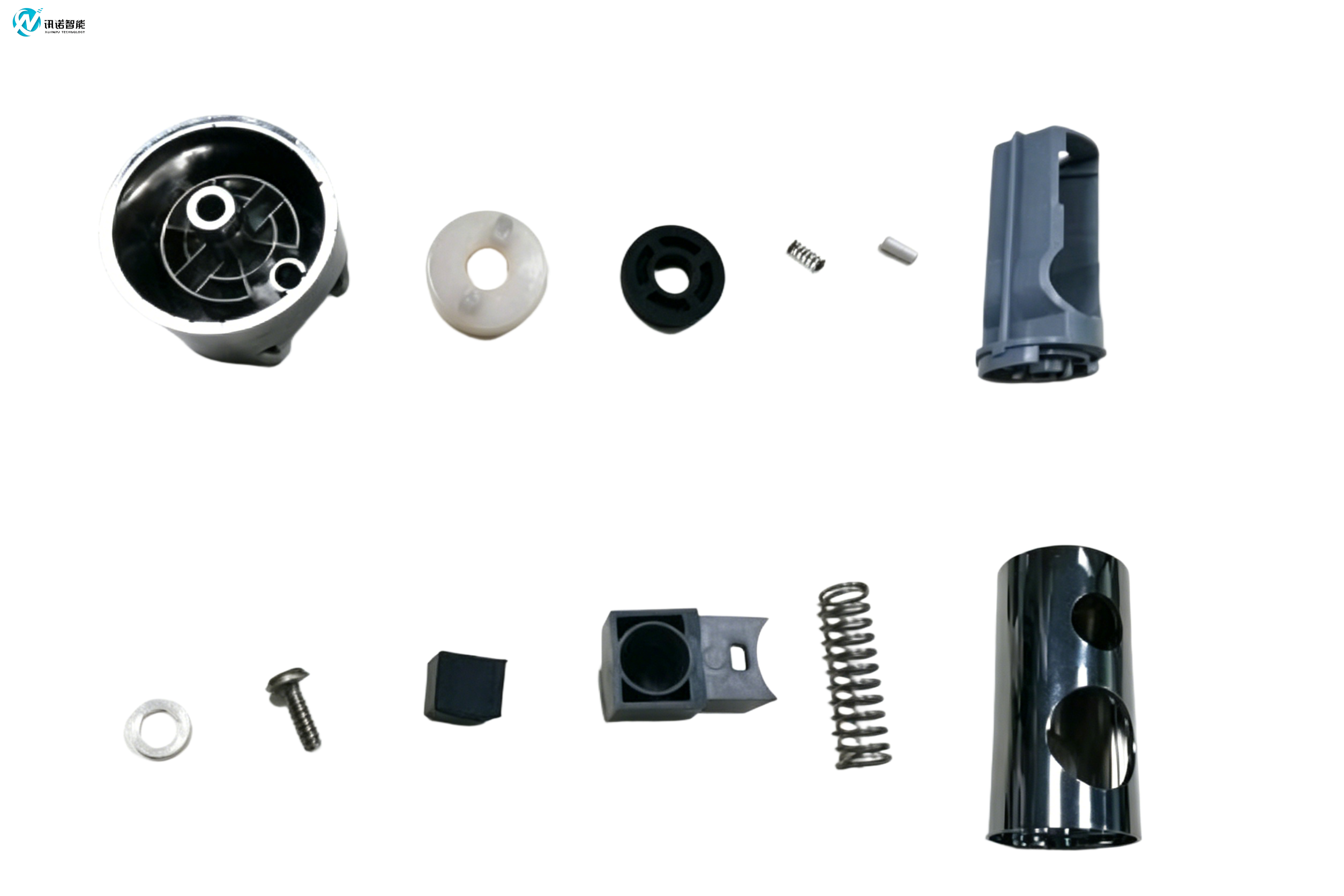

Every assembly step (retaining ring, rubber ring, springs, buttons, etc.) is followed by an inspection, with defective parts automatically rejected to eliminate quality risks.
PLC Control + HMI Operation
User-friendly touchscreen interface enables intuitive parameter setup, real-time monitoring, and quick troubleshooting, reducing operator training time and human error.
High Efficiency & Continuous Production
With a cycle rate of 400–500 pcs/h and precision vibratory feeders for smooth material supply, it supports high-volume, uninterrupted production lines.
Low Noise & Compact Footprint
Working noise is controlled below 85 dB (excluding feeders) for a better workshop environment. The 8000×1800×1800mm footprint fits standard factory layouts without excessive space occupation.
Durable & Low Maintenance DesignBuilt with industrial-grade components (Delta manipulators, reliable pneumatic parts), the machine ensures long-term stable operation and minimizes maintenance downtime.
