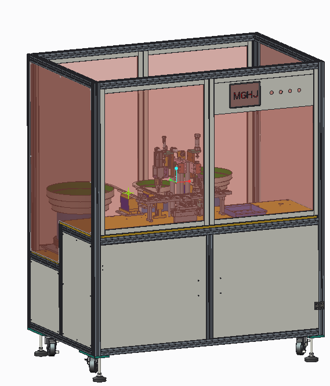

XUNNUO Customized Micro Y ring Automatic Assembly Machine

Machine Description:

• 1. Automatic feeding of water stop shaft and Y-ring via vibration bowls.
• 2. The equipment adopts PLC control with touch screen operation.
• 3. The assembly mechanism uses precision pneumatic components such as pneumatic slides and pneumatic grippers.

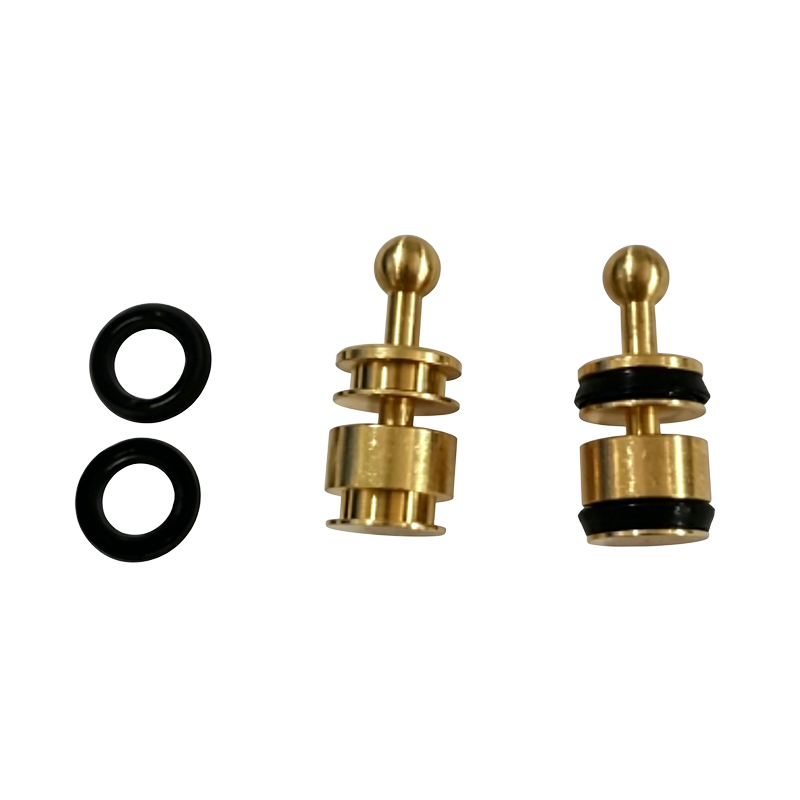

• 4. Automatically complete the assembly of 1 water stop shaft and 2 Y-rings, with the Y-rings required to be coated with diluted silicone oil.
• 5. 100% visual inspection of the orientation and presence of burrs/flanging on the Y-rings installed on the water stop shaft (technical key challenge).
• 6. Post-assembly inspection is performed at each station, with defective products rejected.

1. Water Stop Shaft Feeding :
2. Water stop shafts are orderly fed from the feeding system to the assembly line, ensuring consistent orientation for downstream processing.
3.
4. Initial Quality Inspection :
5. Incoming shafts undergo 100% inspection to reject defective or misaligned parts, preventing production disruptions.
6.
7. Y-ring Feeding & Alignment :
   Y-rings are automatically sorted and fed, ensuring they are correctly positioned for seamless assembly.
8.
9. Precision Y-ring Oiling :
10. A controlled oiling system applies a uniform layer of lubricant to the Y-ring, minimizing friction during assembly and enhancing long-term sealing performance.
11.
12. Post-Assembly Inspection:
    The assembled unit is inspected for proper Y-ring installation, oil coverage, and dimensional accuracy to meet quality standards.
13.
14. Automatic Discharging & Sorting:
    Qualified finished parts are automatically discharged into dedicated bins, while non-conforming parts are rejected for traceability.
