This automatic drain valve button assembly machine adopts PLC control with touchscreen operation for intuitive and reliable handling. Its assembly mechanism uses high-precision servo modules, pneumatic grippers and other precision pneumatic components, with precision vibratory bowl feeders for consistent material supply. Each station performs post-assembly quality inspection and automatically rejects defective products, ensuring stable production efficiency and high product consistency.
Application/Function :
Automatic Flush Valve Button AssemblyEfficiency :
700 PCS/HControl System :
PLC (Multiple brands available)Operator :
One operator for multiple machinesCustomizable :
We provide customized assembly and testing equipment for various toilet tank components, including flush valves, fill valves, push buttons and more

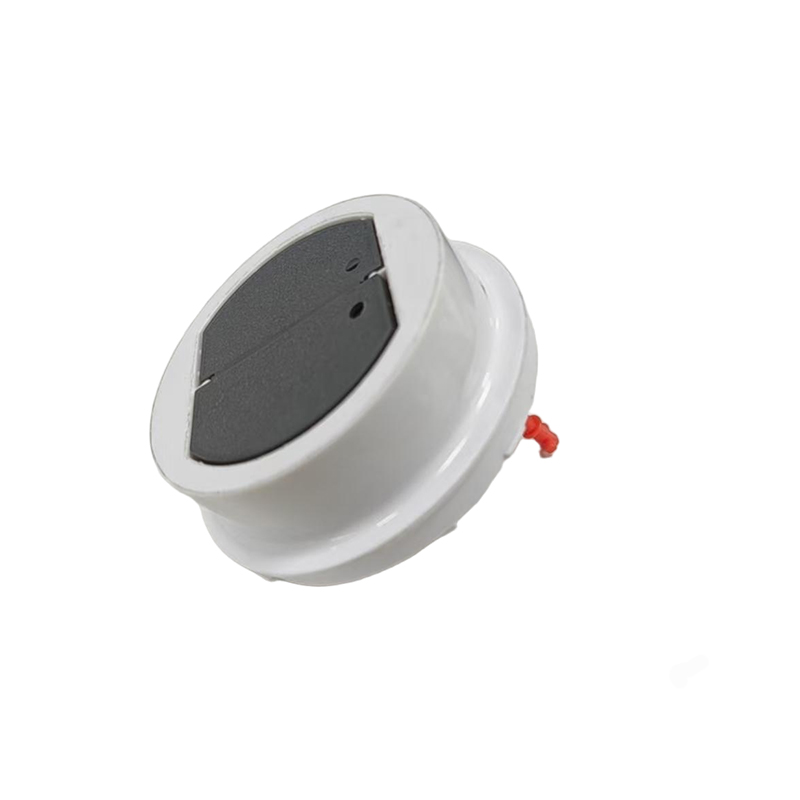

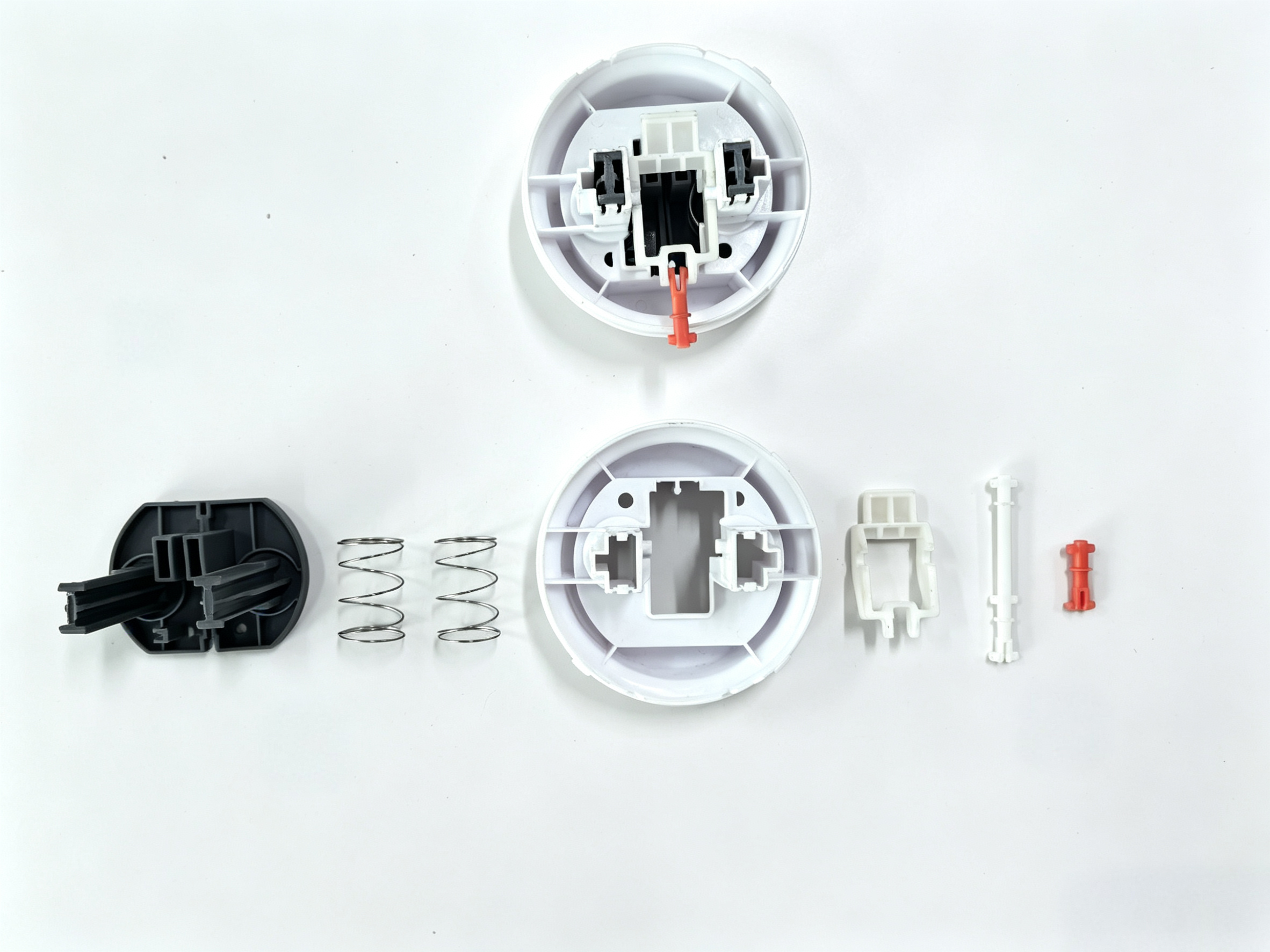

Designed for Flush Valve Button Assembly
Machine Description:
1. The equipment adopts PLC control with touchscreen operation. 2. The assembly mechanism of the equipment uses precision pneumatic components such as servo modules and pneumatic grippers. 3. Material feeding is carried out by high-precision vibratory bowl feeders. 4. After assembly at each process, the equipment inspects the assembly quality and automatically rejects defective products.
Machine Parameters:
| Parameter | Specification |
|---|---|
| Overall Dimensions | 3800 × 2600 × 1800 mm |
| Operating Noise Level | <85 dB (excluding vibratory bowl feeders) |
| Power Supply | AC 220V, 3 KW |
| Air Supply | Air Pressure ≥0.5 MPa, Air Consumption ≈200 L/Min |
| Production Efficiency | 550-600 pcs/Hour |
Machine Advantages:
This automatic water inlet valve assembly line features PLC control with touchscreen operation for intuitive and reliable handling. Its assembly mechanism uses precision components including servo modules, pneumatic grippers, and robots, paired with high-precision vibratory bowl feeders for consistent material supply. Each station performs post-assembly inspection to verify quality and automatically reject defective parts, ensuring stable production efficiency and high product consistency throughout the process.
This automatic drain valve assembly line is controlled by PLC with touchscreen operation for intuitive and reliable handling. It features main transmission using servo motors and cam indexers, paired with high-precision assembly mechanisms including servo modules, robots, pneumatic slides, and grippers. The feeding system adopts Japanese-made precision-base vibratory bowl feeders for stable material supply. Every station includes post-assembly inspection and automatic defective product rejection, ensuring consistent quality and stable production efficiency throughout the process.
This toilet tank fill valve top seal core assembly machine is controlled by PLC with touchscreen operation for easy handling. It uses precision pneumatic components such as pneumatic slides and grippers for reliable assembly. High-precision vibratory feeders ensure stable material feeding. Each assembly station is equipped with inspection to verify proper assembly, with non-conforming parts automatically rejected. It is ideal for high-efficiency, consistent production of sanitary ware components.
This automatic water inlet valve tube assembly machine is designed for high-efficiency, precise assembly of plumbing valve components. It features sequential stations for feeding inlet pipes, installing large/small O-rings, assembling plugs and filters, with integrated photoelectric inspection. Powered by pneumatic cylinders and grippers, it ensures stable, low-fault production. Compact, durable, and easy to maintain, it meets the high-volume manufacturing needs of water valve and plumbing industries.
This toilet tank drain valve final-stage assembly machine is controlled by PLC with a user-friendly touchscreen interface for intuitive, reliable operation. Its assembly mechanism uses high-precision components including servo modules, pneumatic grippers, and robots, paired with precision vibratory bowl feeders for consistent material supply. Each station features post-assembly quality inspection and automatic defective product rejection, ensuring stable production efficiency and high product consistency.
This automatic drain valve button assembly machine adopts PLC control with touchscreen operation for intuitive and reliable handling. Its assembly mechanism uses high-precision servo modules, pneumatic grippers and other precision pneumatic components, with precision vibratory bowl feeders for consistent material supply. Each station performs post-assembly quality inspection and automatically rejects defective products, ensuring stable production efficiency and high product consistency.
This toilet button assembly machine is controlled by PLC with touch screen for easy operation. It adopts servo modules and high-precision pneumatic grippers to ensure accurate movement. Materials are automatically fed via precision vibrating plates. The equipment completes full automatic assembly of all button parts. Automatic inspection is carried out after each process to check assembly quality. Defective products will be eliminated intelligently. Featuring stable performance and high efficiency, it is ideal for mass production and effectively improves finished product yield.
This automatic toilet drain valve float cup assembly machine adopts PLC control with a user-friendly touchscreen interface for intuitive, reliable operation. It is fitted with high-precision servo modules, pneumatic grippers and vibratory bowl feeders to deliver accurate assembly and consistent material supply. Each assembly process is followed by quality inspection and automatic defective product rejection, ensuring high product uniformity and stable production efficiency for high-volume manufacturing.
