Name: Automatic Tank Button Assembly Machine
Availability: InStock

Automatic Tank Button Assembly Machine

This toilet button assembly machine is controlled by PLC with touch screen for easy operation. It adopts servo modules and high-precision pneumatic grippers to ensure accurate movement. Materials are automatically fed via precision vibrating plates. The equipment completes full automatic assembly of all button parts. Automatic inspection is carried out after each process to check assembly quality. Defective products will be eliminated intelligently. Featuring stable performance and high efficiency, it is ideal for mass production and effectively improves finished product yield.

Application/Function :

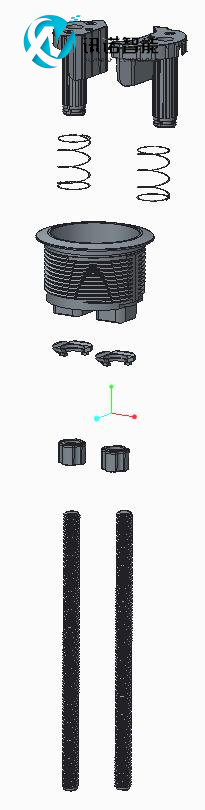

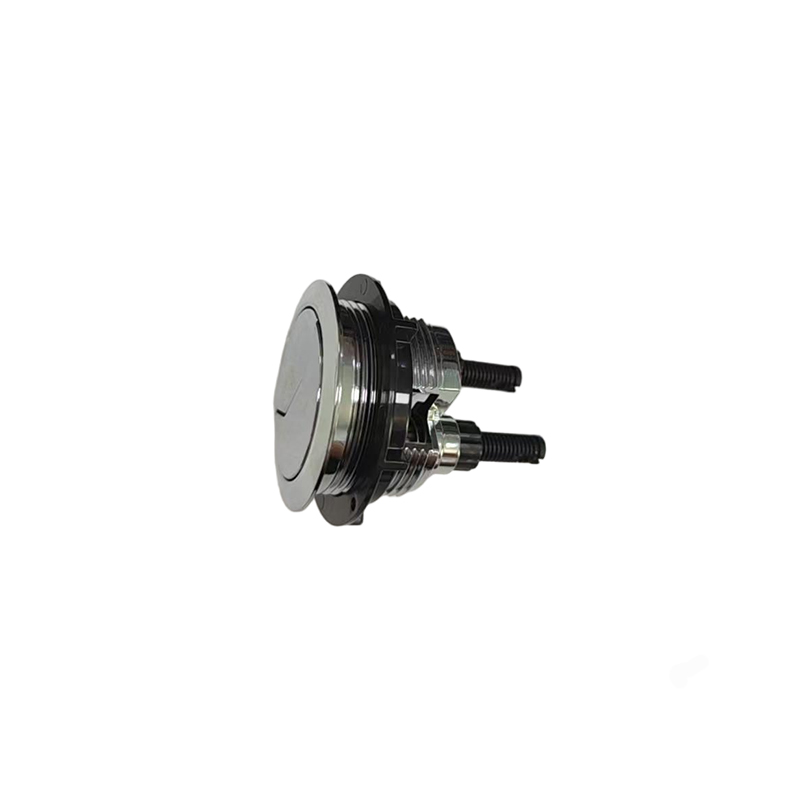

Toilet Flush Button Assembly
Efficiency :

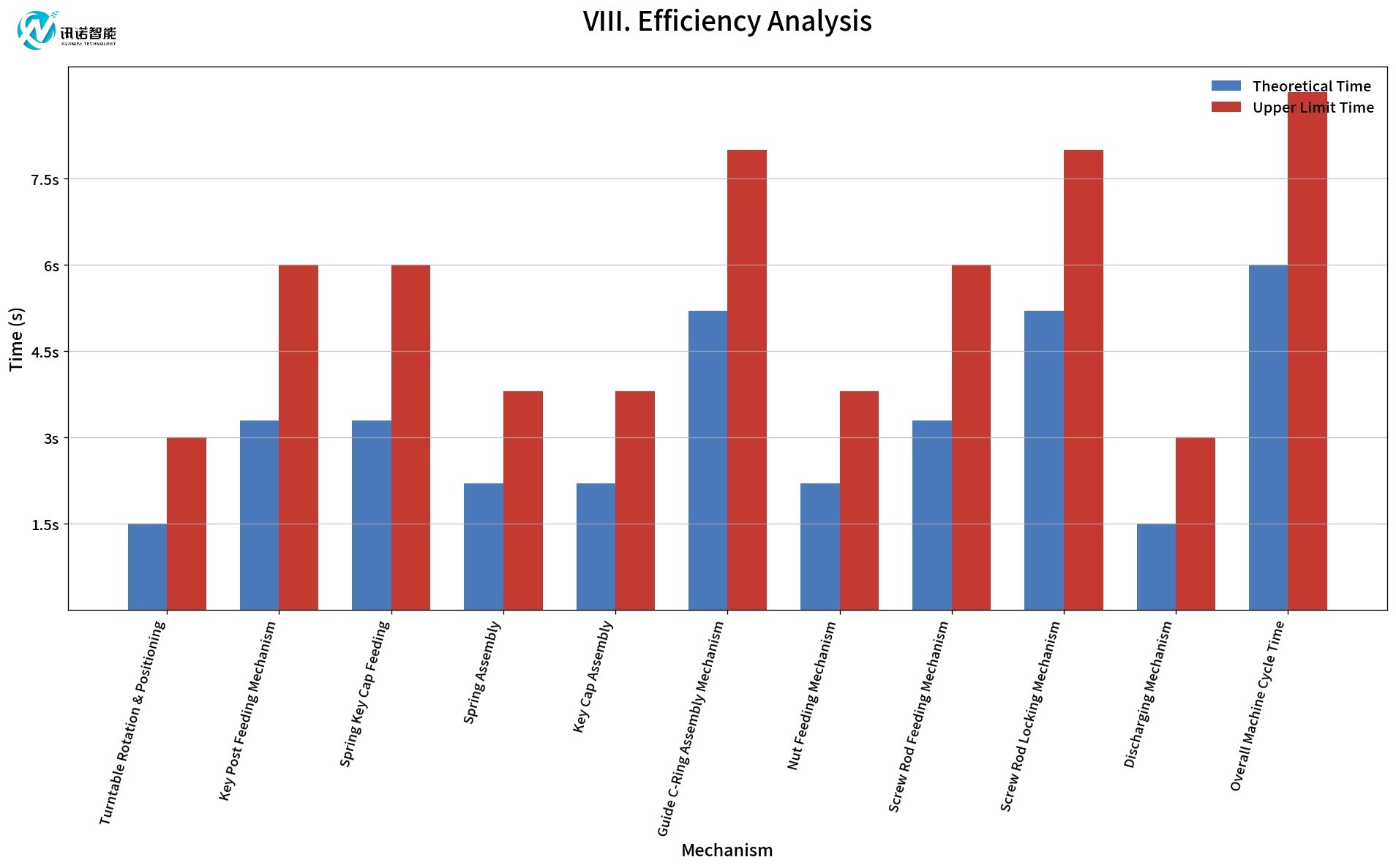

600 Pcs/Hour
Control System :
PLC (Multiple brands available)
Operator :
One operator for multiple machines
Customizable :
We provide customized assembly and testing equipment for various toilet tank components, including flush valves, fill valves, push buttons and more

Inquiry Now

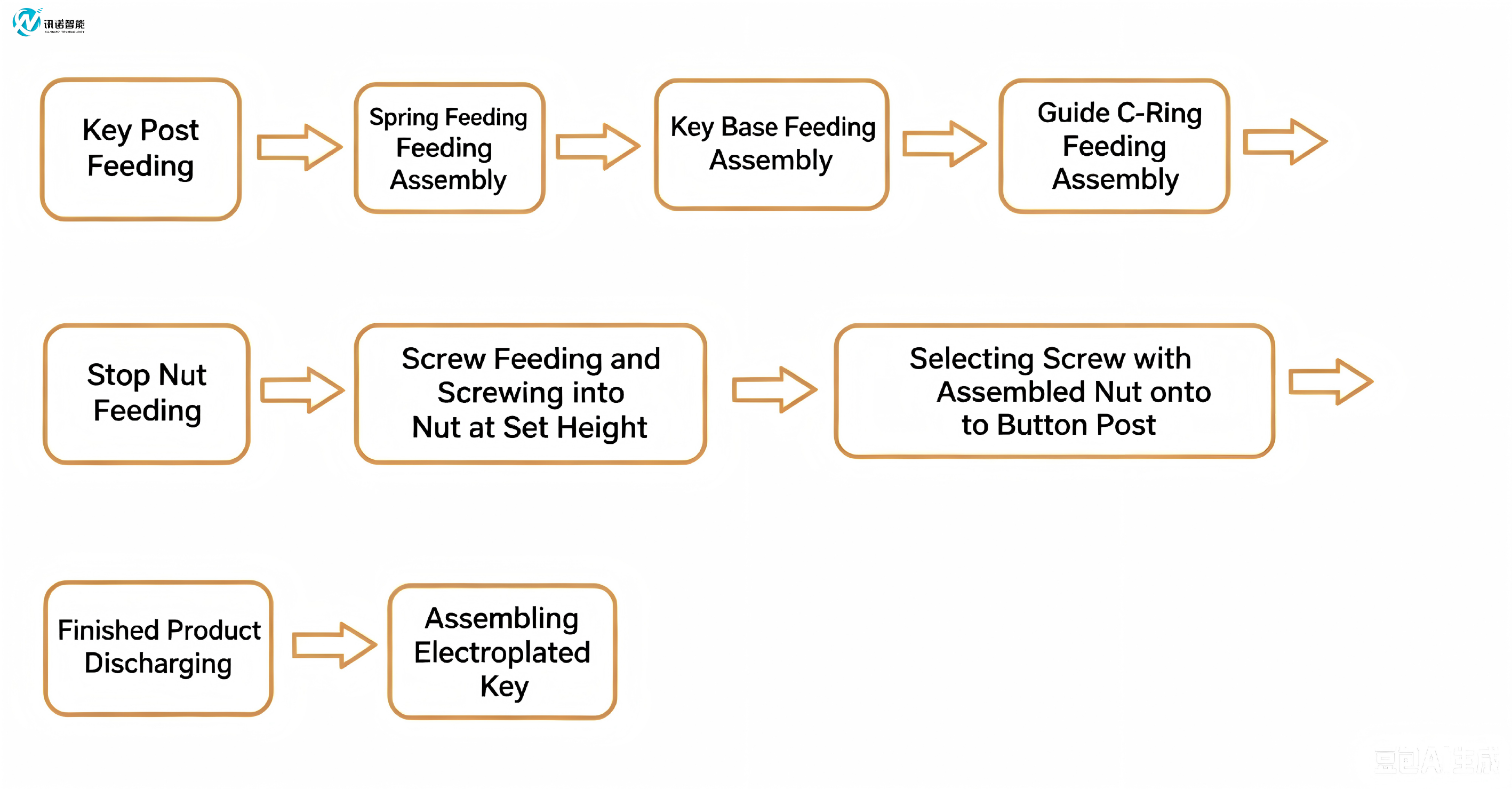

Machine Working Process:

Machine Descriptions:
- 1. The equipment adopts PLC control with touchscreen operation.

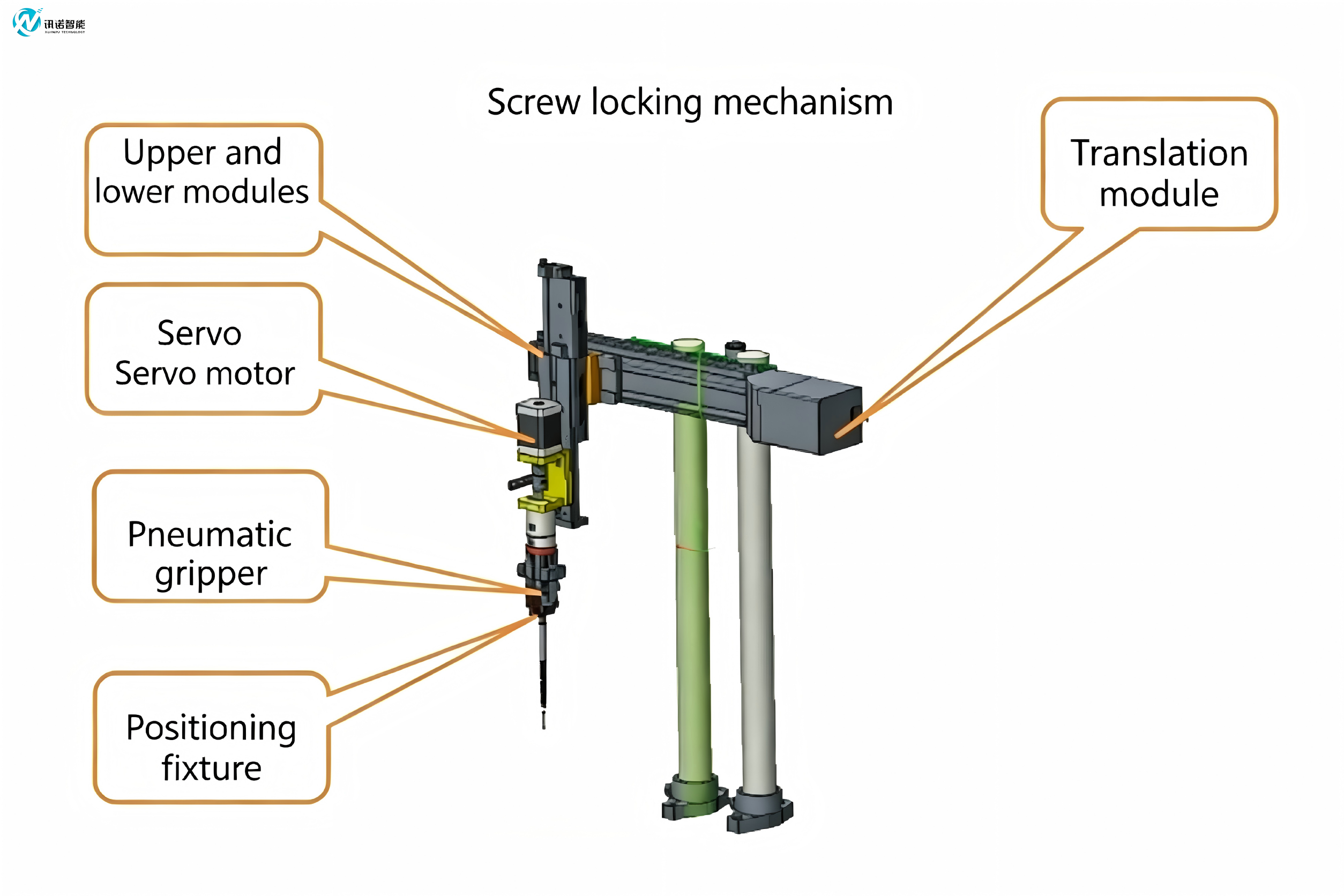

- 2. The assembly mechanism of the equipment uses precision pneumatic components such as servo modules and pneumatic grippers.

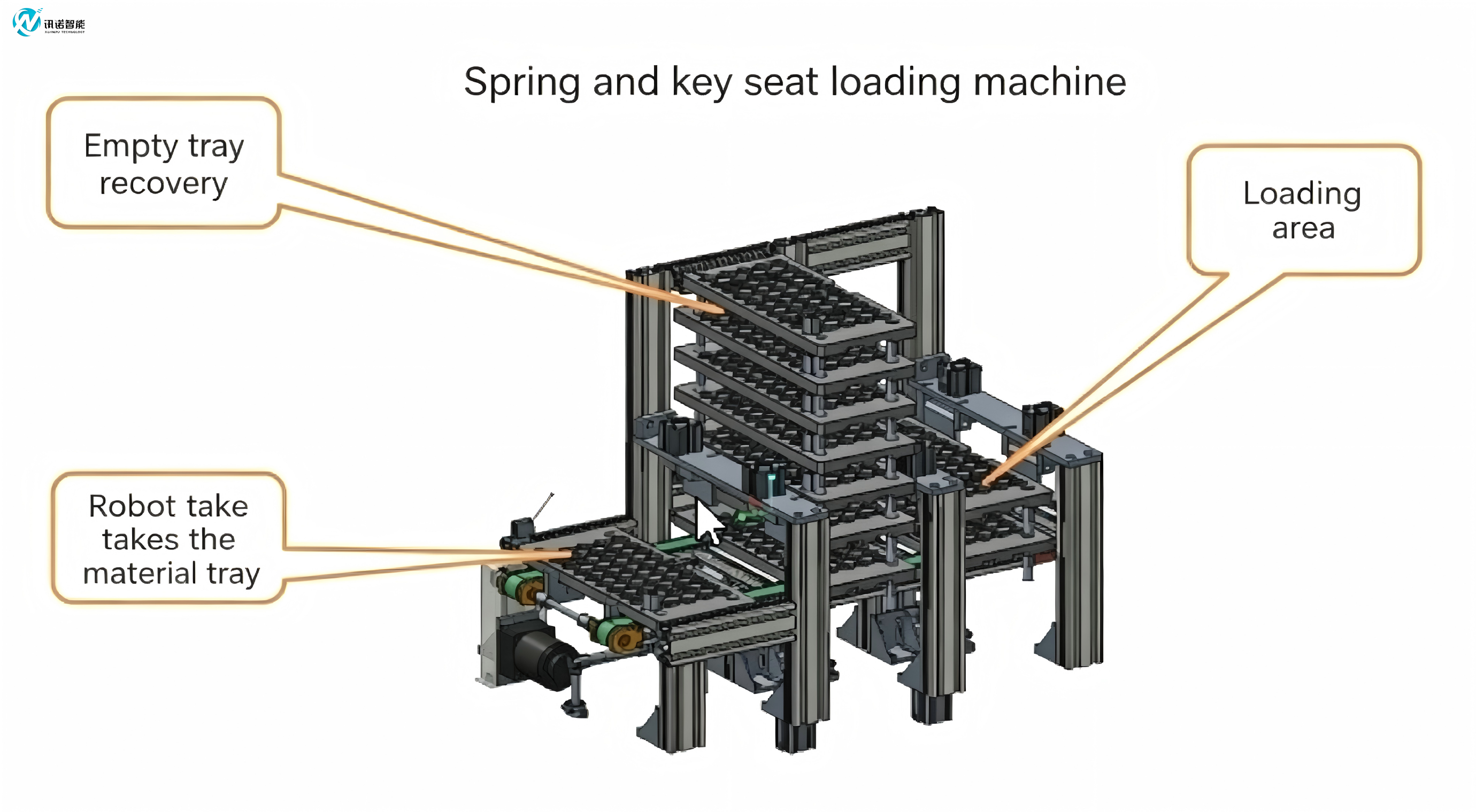

- 3. Material feeding is carried out by high-precision vibratory bowl feeders.
- 4. After assembly at each process, the equipment inspects the assembly quality and automatically rejects defective products.
Machine Advantages:
- Fully Automated Operation: Realizes full unmanned operation from component feeding to finished product inspection and rejection without manual intervention, greatly improving production efficiency and reducing labor intensity and employment costs.
- High Precision and Consistency: The core actuation components are all precision-grade configurations, with high assembly accuracy and strong product consistency, which can effectively solve the problems of unstable accuracy and large product differences caused by manual assembly.
- Stable and Reliable: The core control system and actuation components are all sourced from industry-renowned brands, ensuring stable equipment operation and low failure rate, which can adapt to 7*24 hours continuous production needs.
- Easy Operation and Maintenance: The touchscreen operation interface is simple and intuitive, and the modular design facilitates daily maintenance and fault troubleshooting of the equipment, greatly shortening the equipment downtime.
- Whole-Process Quality Control: Each process is equipped with an inspection link to automatically reject defective products, ensuring the yield rate of finished products and reducing quality control costs.
