I. Equipment Specifications
2026-8-5 3
1. Dimensions: 1500 x 1400 x 900 mm
2. Noise Level: <85 dB during operation
3. Power Supply: 220 V, 0.8 kW
4. Air Supply: Pressure ≥ 0.5 MPa
5. Equipment Efficiency: 1000 pcs/h
Application :

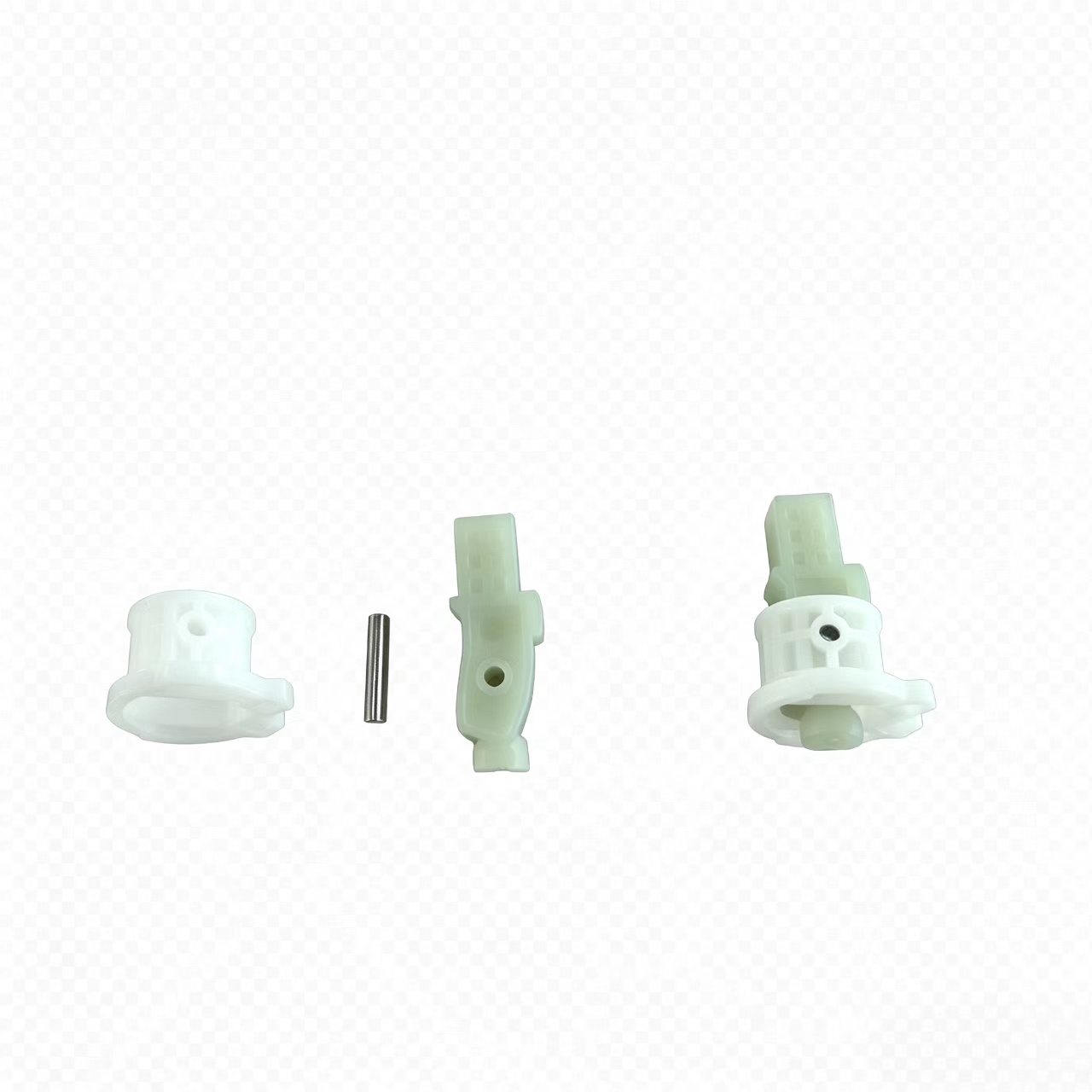

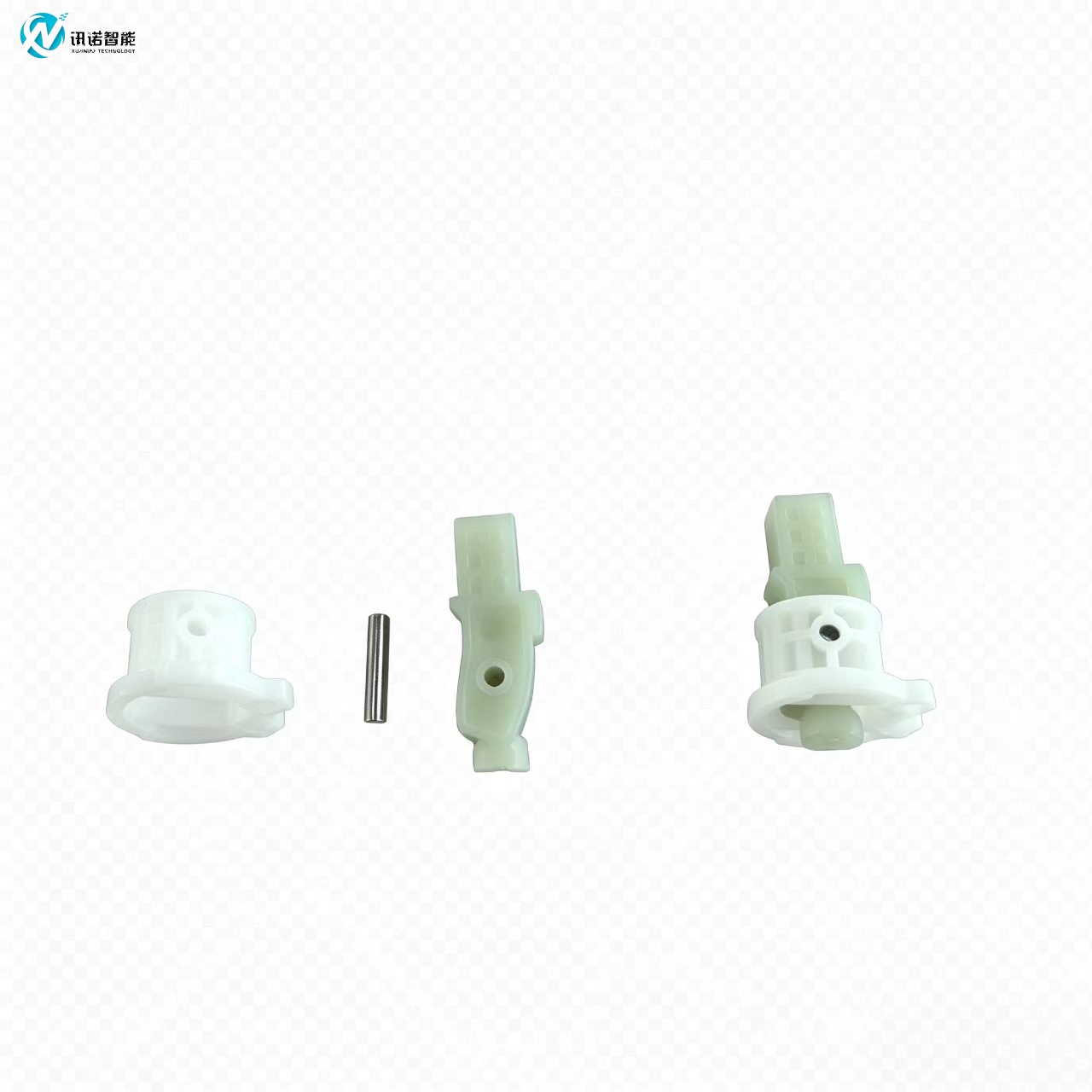

Valve Core 3-in-1 Handle Assembly MachineEfficiency :
1000 psc/HControl System :
PLC (Multiple brands available)Operator :
One operator for multiple machinesCustomizable :
We provide customized assembly and testing equipment for various toilet tank components, including flush valves, fill valves, push buttons and more

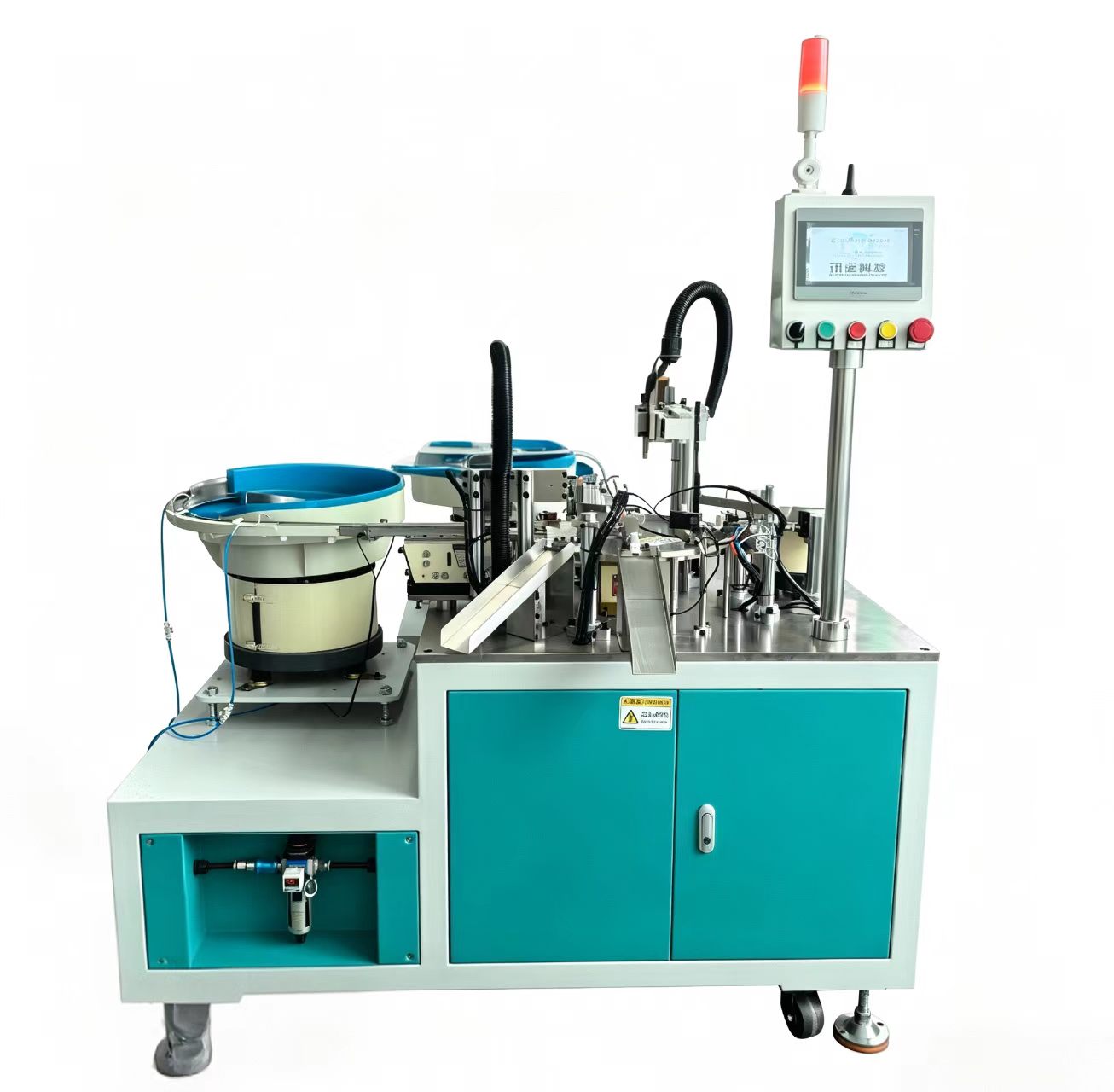

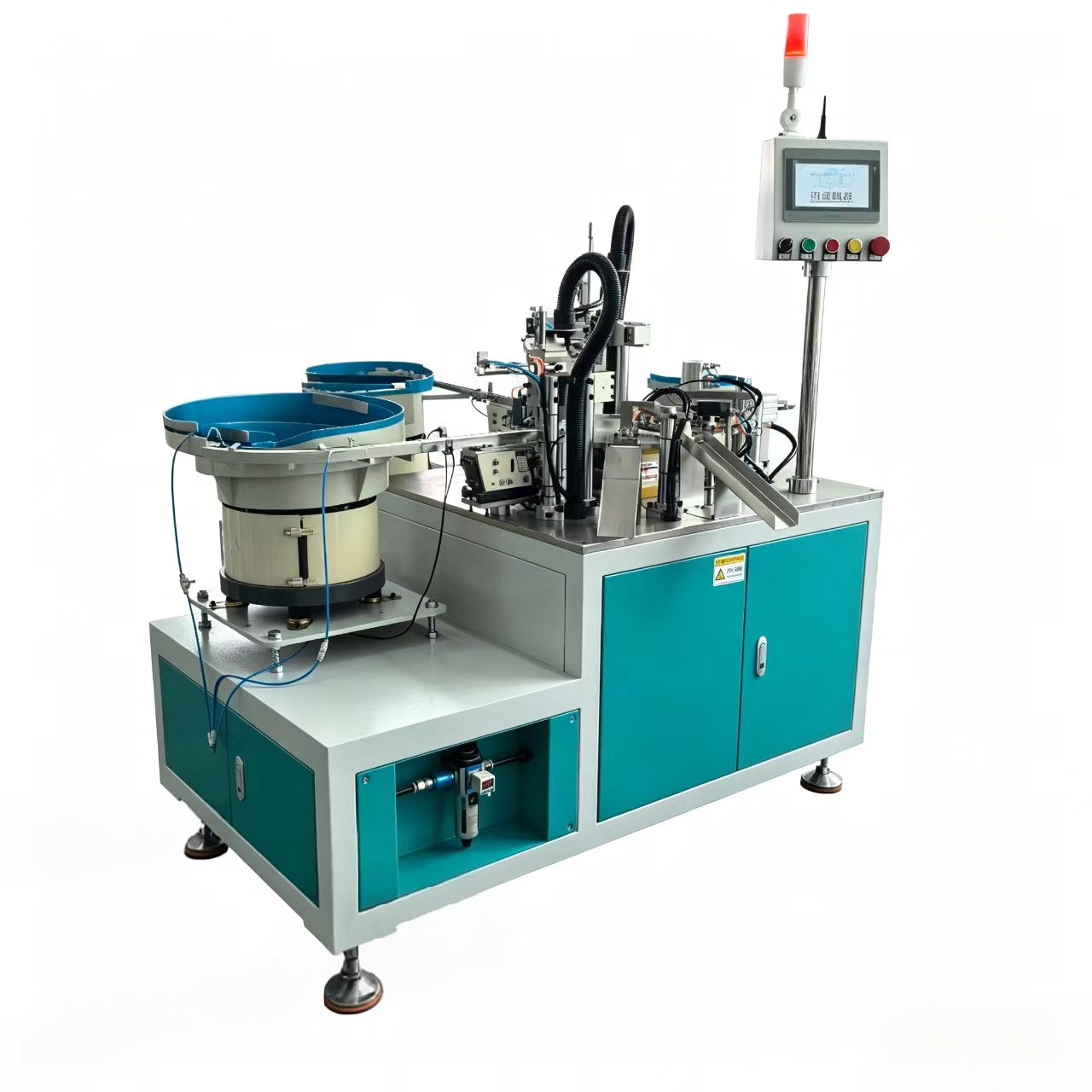

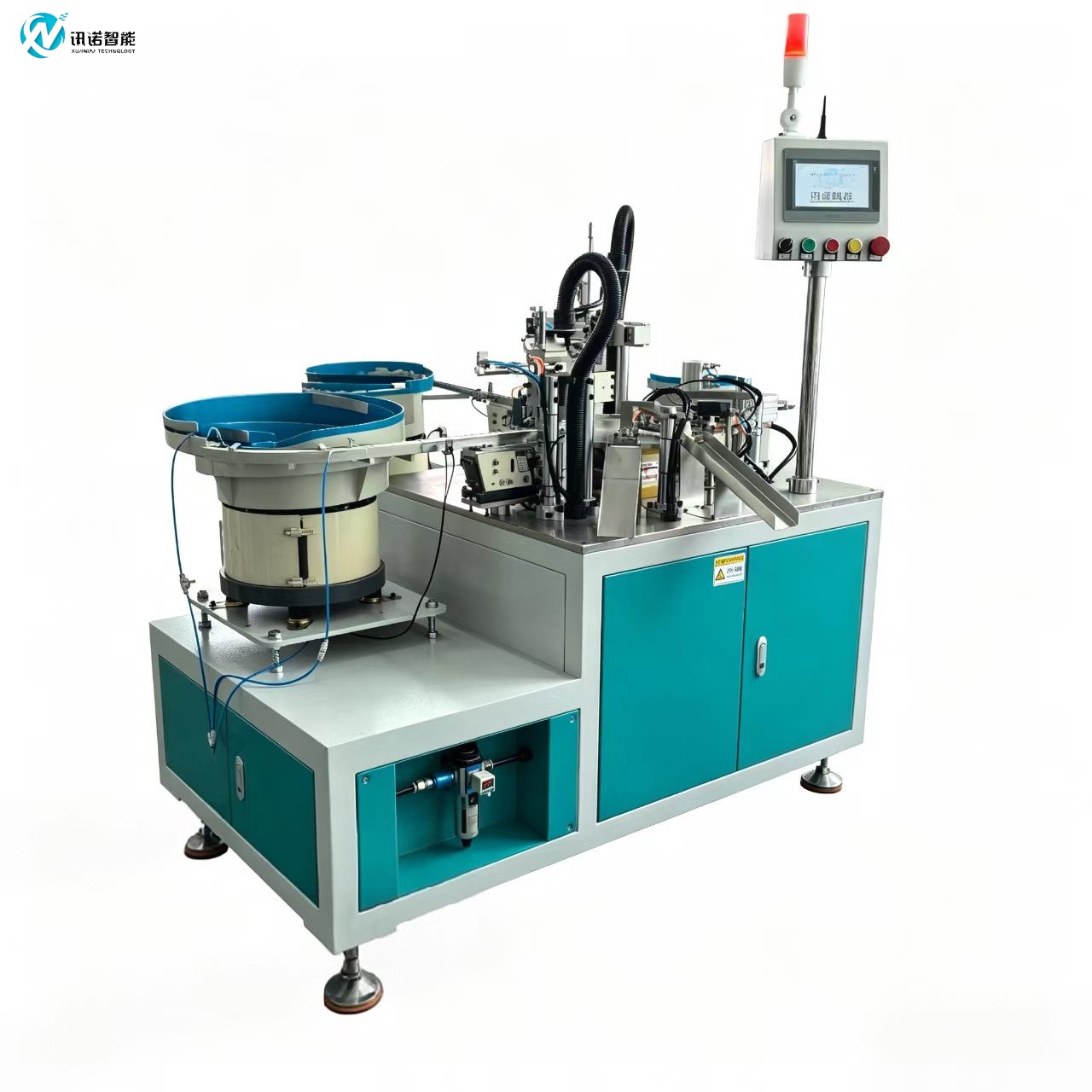

Equipment Description
1. Automatic material feeding.
2. The equipment is controlled via PLC and operated through a touchscreen interface.
3. The assembly mechanism utilizes precision pneumatic components, such as pneumatic slide tables and pneumatic grippers.
4. After each assembly stage, the components are inspected to ensure proper assembly; defective parts are automatically rejected.
Key Project Specifications
1. Personnel requirements: 0.5 full-time equivalent (FTE) required for material feeding.
2. Production capacity: Designed for 1,000 units per hour (pcs/h).
3. Incoming components must be free of burrs and flash.
4. Incoming components must demonstrate high consistency.
Customized for vane-type soft-close shafts Comes with automatic feeding function Adopts PLC control system with touch screen operation Equipped with high-precision pneumatic slides and grippers Performs post-assembly quality inspection and automatically rejects defective items Delivers stable product quality and high production efficiency
Adopts streamlined integrated production workflow Realizes robotic handling and inspection of shell parts at the initial station Uses vibratory feeding for shafts, oil pins, O-rings, washers and welding caps Equipped with vision-guided assembly robots to finish oil pin insertion, grease coating and precision component fitting Arranges inline quality inspection at each working procedure Completes product sealing through ultrasonic welding Automatically classifies qualified and defective finished products Ensures stable product quality and high production efficiency for toilet lid slow-close damping mechanisms
Adopts PLC control and touch screen operation Equipped with pneumatic sliding tables and grippers for precise handling Comes with vibratory bowls to realize automatic feeding Automatically completes sequential assembly of shaft sleeves, springs, buttons and descent shafts Low labor demand with few equipment malfunctions High product yield, stable, efficient and reliable for automated assembly lines
I. Equipment Specifications 2026-8-5 3 1. Dimensions: 1500 x 1400 x 900 mm 2. Noise Level: <85 dB during operation 3. Power Supply: 220 V, 0.8 kW 4. Air Supply: Pressure ≥ 0.5 MPa 5. Equipment Efficiency: 1000 pcs/h
