XUNNUO spiral damping shaft automatic assembly line features a streamlined workflow: starting with robotic handling and inspection of housing components, followed by vibration feeding for shafts, oil pins, O-rings, washers, and welding caps. Vision-guided assembly robots perform oil pin insertion, grease application, and precision part fitting, with in-line quality checks at every stage. Finally, ultrasonic welding seals the unit, and finished products are sorted into good/defective outputs, ensuring consistent quality and high efficiency for toilet lid slow-close mechanisms.
Application/Function :

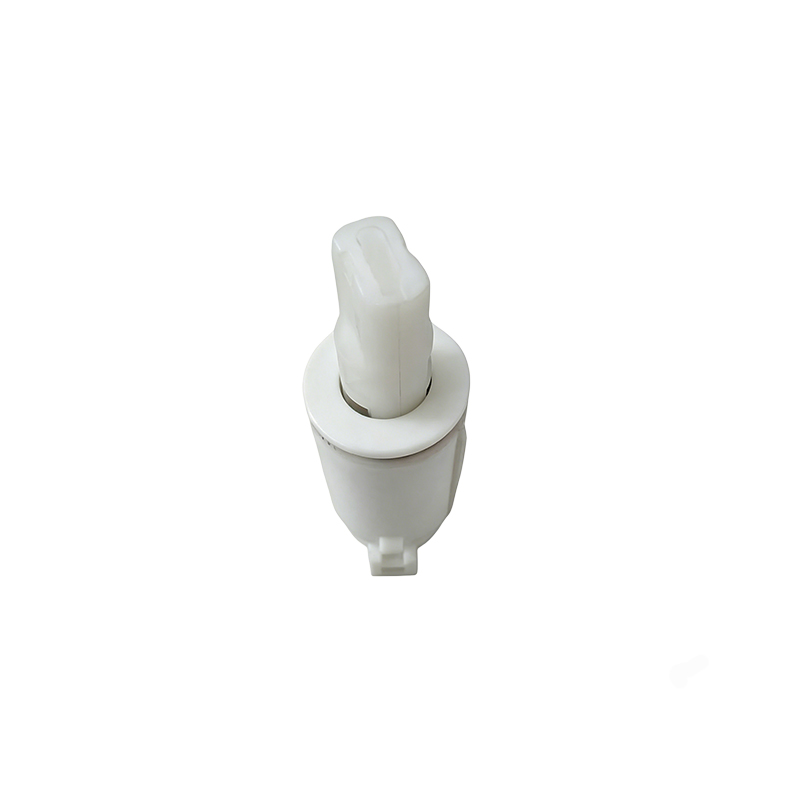

Automatic Screw-type Soft-close Shaft Assembly MachineEfficiency :
700 – 750 PCS/HControl System :
PLC (Multiple brands available)Operator :
One operator for multiple machinesCustomizable :
We provide automatic assembly equipment for various toilet seat covers, slow-close hinges and other accessories

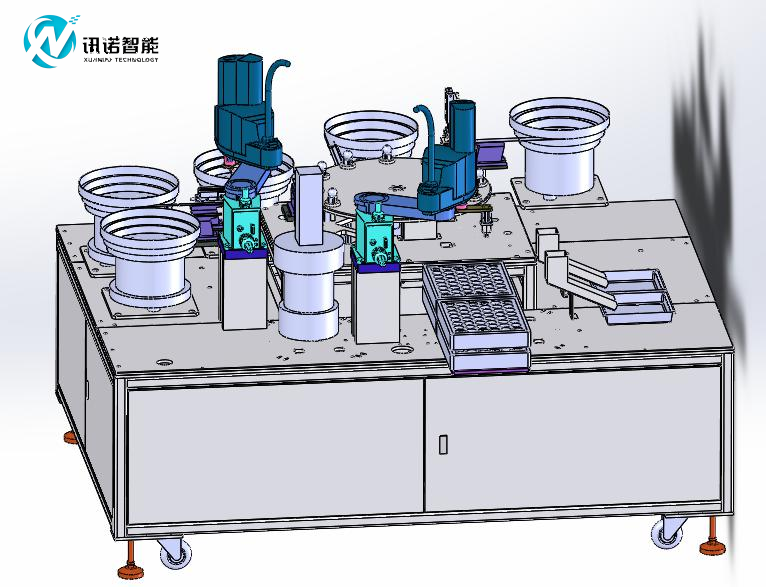

Machine 3D Model

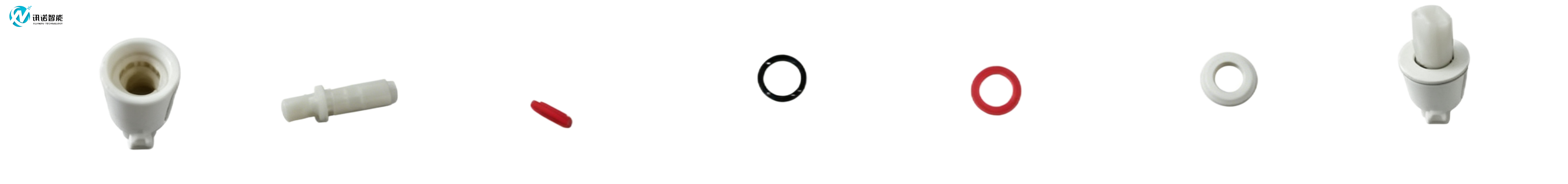

Key Terminology：
Work Flow Description:
Equipment Specifications:
| Parameter | Specification |
|---|---|
| Overall Dimensions | 1800 x 1500 mm (L × W) |
| Working Surface Height | 750 – 850 mm |
| Production Efficiency | 700 – 750 PCS / H |
| Operating Noise | < 85 dB |
| Power Supply Voltage | 220 V |
| Air Supply Pressure | 0.4 – 0.6 MPa |

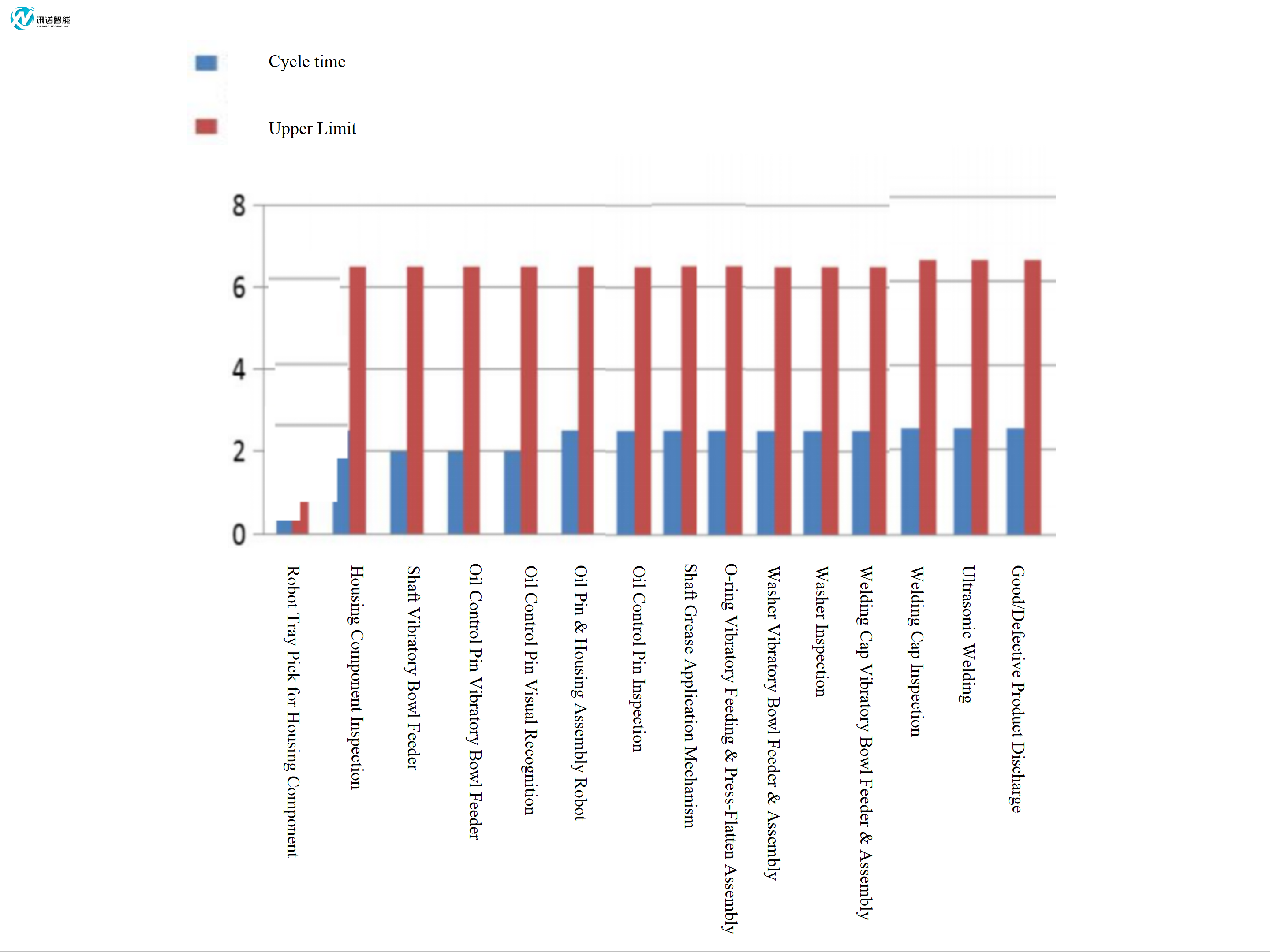

Station Efficiency Report:
Machine Advantages:
This is an automatic descent shaft sleeve assembly machine developed by Xiamen Xunnuo Technology. It adopts PLC control and touchscreen operation, with pneumatic sliding tables and pneumatic grippers for precise handling. Equipped with vibration bowls for automatic feeding, it completes shaft sleeve, spring, button and descent shaft assembly in sequence. Key specs: 220V/1.5 KW, air supply ≥0.5Mpa, output 700 pcs/H, noise <85 dB. It needs only 0.5 operator, with ≤2 stoppages per hour and 99.5% yield excluding material and human factors. Stable, efficient and reliable for automated assembly lines.
XUNNUO spiral damping shaft automatic assembly line features a streamlined workflow: starting with robotic handling and inspection of housing components, followed by vibration feeding for shafts, oil pins, O-rings, washers, and welding caps. Vision-guided assembly robots perform oil pin insertion, grease application, and precision part fitting, with in-line quality checks at every stage. Finally, ultrasonic welding seals the unit, and finished products are sorted into good/defective outputs, ensuring consistent quality and high efficiency for toilet lid slow-close mechanisms.
This automatic assembly machine is designed for vane-type soft-close shafts, featuring automatic material feeding, PLC control with touchscreen operation, and precision pneumatic components like slides and grippers. It performs full-process assembly: vane feeding, shaft/packing/O-ring installation, oil filling, housing assembly, welding, and post-process quality inspection with defective part rejection, ensuring consistent production quality and efficiency.
