Name: XUNNUO Customized Soft Close Damper Button Automatic Assembly Machine
Availability: InStock

XUNNUO Customized Soft Close Damper Button Automatic Assembly Machine

Adopts PLC control and touch screen operation
Equipped with pneumatic sliding tables and grippers for precise handling
Comes with vibratory bowls to realize automatic feeding
Automatically completes sequential assembly of shaft sleeves, springs, buttons and descent shafts
Low labor demand with few equipment malfunctions
High product yield, stable, efficient and reliable for automated assembly lines

Application :

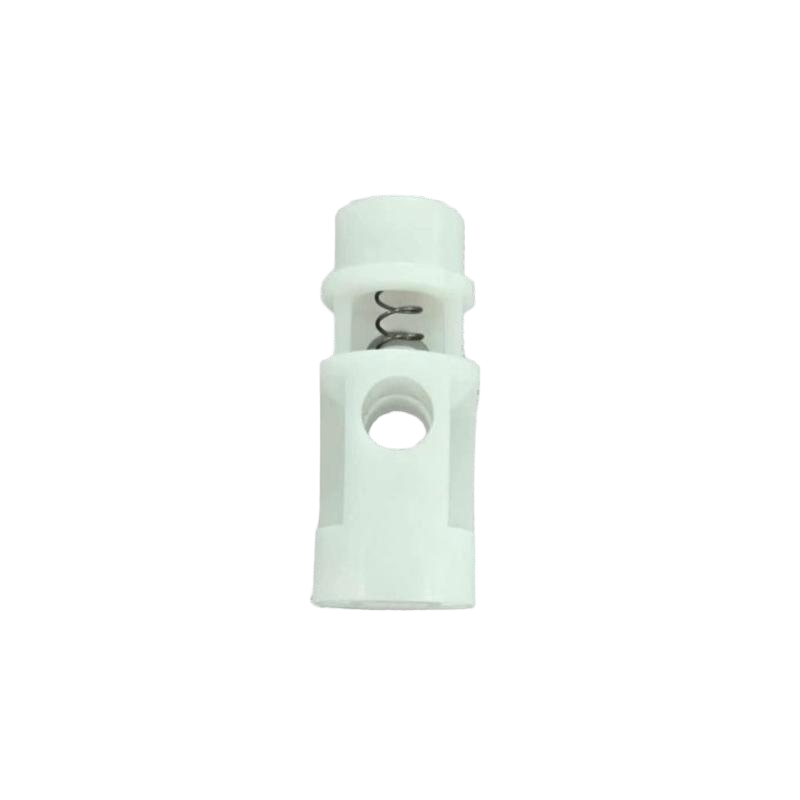

Soft-close Shaft Button Assembly
Efficiency :
700 psc/H
Control System :
PLC (Multiple brands available)
Operator :
One operator for multiple machines
Customizable :
We provide customized assembly and testing equipment for various toilet tank components, including flush valves, fill valves, push buttons and more

Inquiry Now

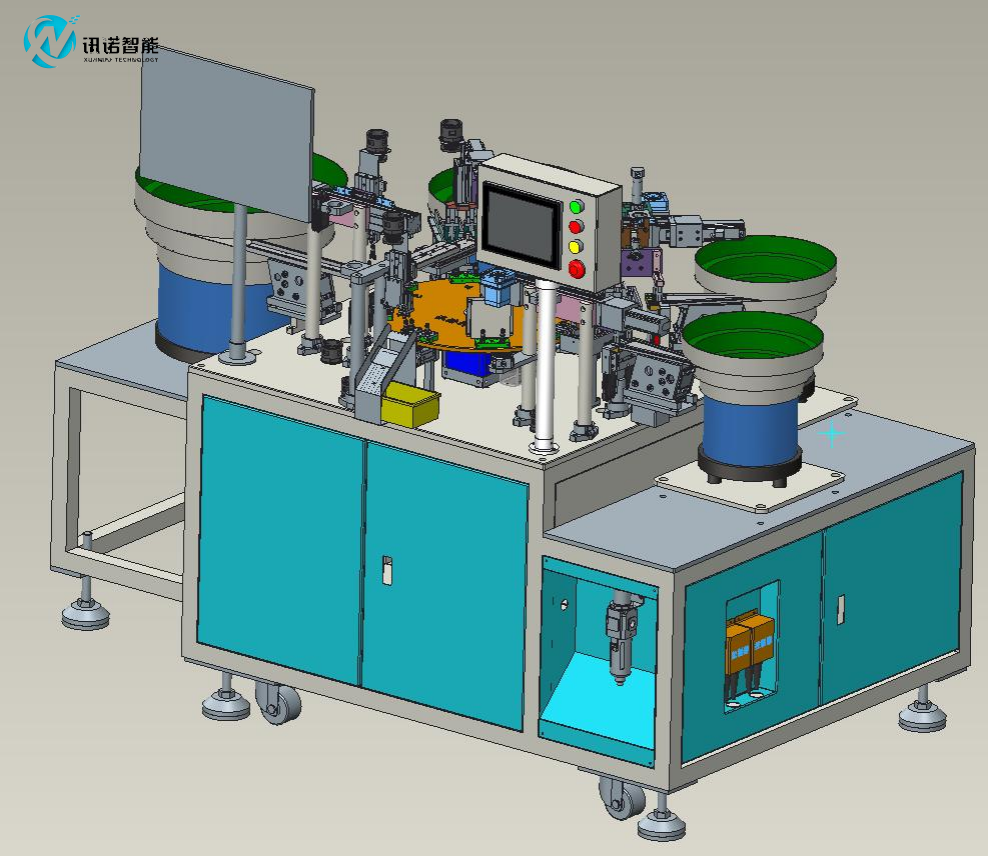

(Machine 3D Description)

Equipment Specification Sheet：

No.	Parameter	Specification
1	Overall Dimensions	1900 × 1100 × 1800 mm
2	Noise Level	≤ 85 dB (during operation)
3	Power Supply	AC 220 V, 1.5 kW
4	Air Supply Requirement	≥ 0.5 MPa (clean, dry compressed air)
5	Rated Production Efficiency	700 pcs/hour
6	Control System	PLC + Touchscreen HMI
7	Feeding System	Automatic feeding via vibration bowls
8	Actuation Components	Precision pneumatic slides and grippers
9	Operator Requirement	0.5 person (for material loading & troubleshooting)
10	Yield Rate	≥ 99.5% (excluding material and human errors)
11	Abnormal Downtime	≤ 2 stops per hour (excluding material and human errors)

1. PLC & Touchscreen Control System: Delivers stable, precise, and user-friendly operation with easy parameter adjustment.
2. Vibration Bowl Automatic Feeding: Ensures continuous, reliable supply of shaft sleeves, springs, buttons, and slow-down shafts.
3. High-Precision Pneumatic Actuation: Uses pneumatic slides and grippers for consistent assembly force and positioning accuracy.
4. Compact & Integrated Design: All functions are integrated into a 1900×1100×1800 mm footprint, saving factory floor space.
5. Low-Noise Operation: Working noise is controlled below 85 dB, meeting industrial environmental standards.
6. Standardized Air/Power Interface: Operates on common 220V power and ≥0.5 MPa compressed air, ensuring easy integration into existing lines.

1. High Efficiency: Rated output of 700 pcs/hour, significantly boosting production capacity.
2. Low Labor Cost: Requires only 0.5 operators for loading and supervision, cutting labor expenses.
3. Superior Quality Consistency: Achieves a yield rate of ≥99.5% (excluding material issues), reducing defects and rework.
4. High Stability: ≤2 abnormal stops per hour ensures continuous, reliable production.
5. Easy Maintenance & Adaptability: Modular design allows quick troubleshooting and flexible adaptation to similar product variants.
6. Long-Term Cost Savings: Durable construction and low downtime reduce maintenance and operational costs over the machine’s life cycle.
