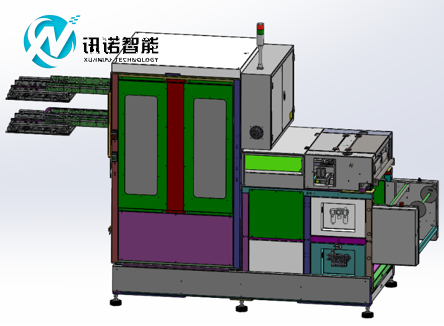

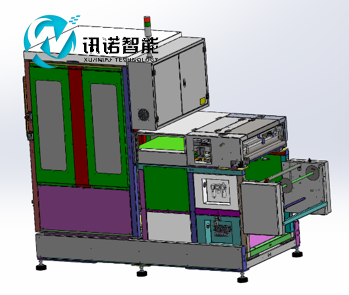

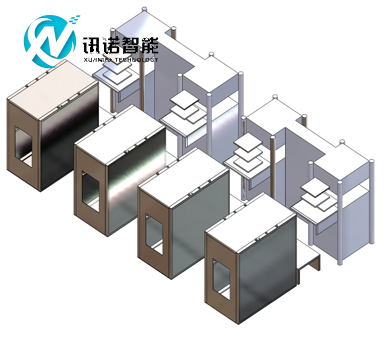

Multi-functional Integrated Rubber Cutting Machine with Loading & Unloading （Model 07）

Machine Basic Functions：

Machine Technical Parameters:

Core Features:

1. 1. Automatic three-layer board feeding system
2. 2. Rubber weight accuracy: ±0.1 g
3. 3. Automatic feeding to mold
4. 4. Positioning accuracy of rubber strips: ±1 mm
5. 5. Process flow: Edge cutting → Material cutting → Weighing → Screening → Material arranging → Feeding → Demolding
6. 6. Upper and lower layers support different spacing and weight settings
7. 7. Automatic / manual demolding available
8. 8. Precise control of weight and length per strip
9. 9. Fast and accurate positioning for each mold
10. 10. Manual demolding allows real-time quality and mold inspection
11. 11. One operator can manage multiple machines (only demolding required)
12. 12. Significantly reduce material cost and improve product quality
13. 13. Air-blow automatic demolding for easy-demolding products

Overall Introduction:

• Operation Process: The feeding system cuts rubber strips to the specified weight and positions them → The strip picking and loading mechanism picks up two layers of rubber strips → The double-layer rubber strips are simultaneously loaded into the mold → Vulcanization is performed by the vulcanizing machine → Demolding is done manually or automatically.

  The loading and transfer sliding table is designed at the same height as the manual operating platform, serving as a replacement platform to facilitate manual demolding and mold replacement.

Safety Devices:

1. 1. The loading mechanism is equipped with anti-collision sensors, which also protect the molds.
2. 2. Anti-collision edge sensors are installed on the transfer mechanism of the feeding system.
3. 3. Safety light curtains are fitted at the material picking area for protection.
4. 4. Mechanical limit stops are mounted on the loading mechanism.
5. 5. The manual loading start button is installed outside the safety zone.
6. 6. Emergency stop switches (power-off stop switches) are arranged at multiple positions.

Equipment Advantages:

1. Integrated Functions: Edge trimming, cutting, weighing, sorting, material arranging, loading and demolding are all realized in one unit.

2. Labor Savings: Eliminates manpower for cutting, edge trimming, material arranging and loading. One operator can monitor multiple machines and only take charge of demolding. Automatic air-blow demolding is available for products easy to release from molds.

3. Material Savings: The equipment delivers precise weight control and accurate automatic material arrangement for each rubber strip. Without weighing and sorting functions, excessive material weight will cause thick flash, material waste and subsequent processing issues; insufficient weight will lead to defective products due to material shortage, resulting in material and labor losses. Uniform length and arrangement per mold enable accurate weight management. If each rubber strip saves an average of 0.1 gram, the total material cost reduction will be considerable.

4. Quality Improvement:

   • Precise control over rubber material weight
   • Consistent length of arranged materials
   • Dual-mold simultaneous loading eliminates time difference caused by single-mold feeding

5. Efficiency Enhancement: Two molds can complete loading and demolding simultaneously.

Notes：

• Middle mold guide pillar direction: downward
• Strip width: ≤35 mm
• Strip thickness: ≤6 mm
• Extension arm stroke: 1000 mm
• Max. reference mold size: 600mm×600mm
• For special requirements, contact our technical team
