XUNNUO Customized Water Meter Vane Wheel Seat Automatic Assembly Machine

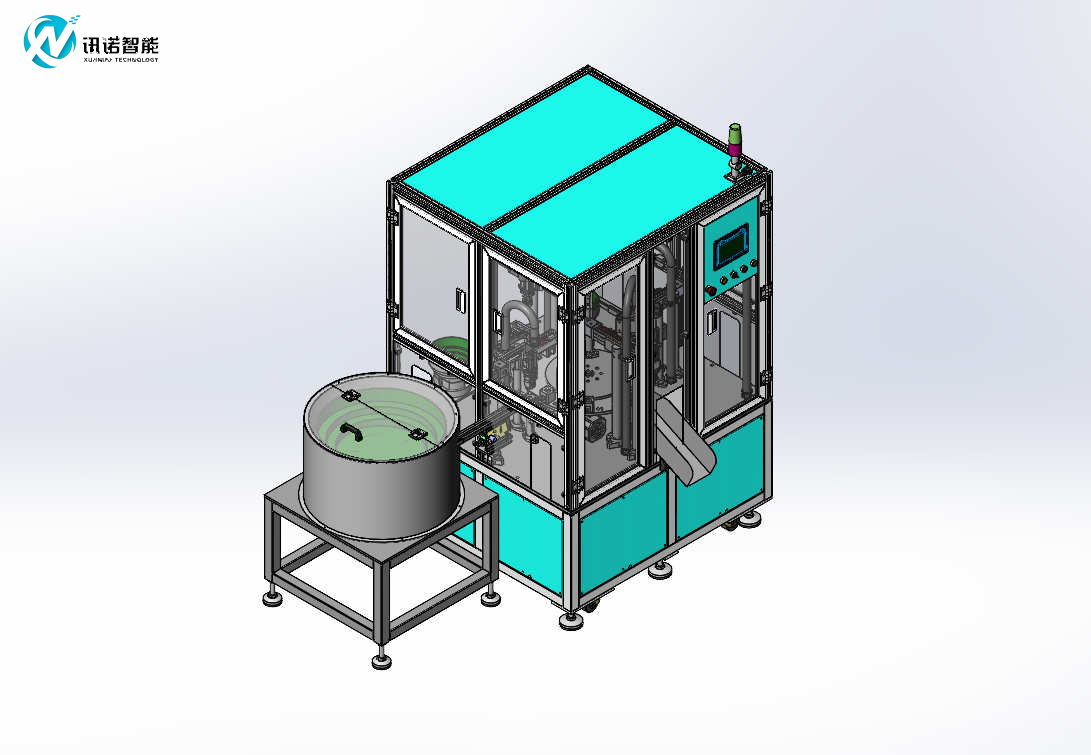

Machine 3D Drawing

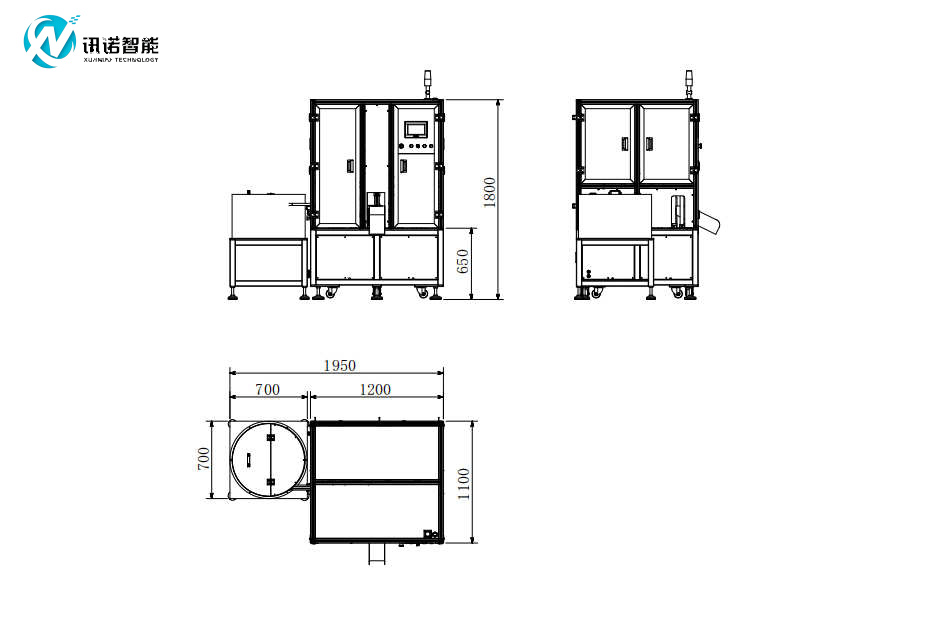

Machine Dimension

Working Process:

• Base Loading
• Base Inspection
• Flat Plug Orientation (Front/Back Sorting)
• Flat Plug Assembly
• Flat Plug Press-Fit & Inspection
• Cylindrical Plug Assembly
• Cylindrical Plug Press-Fit & Inspection
• Finished Product Discharging

Machine Description:

• 1. The base, flat plug, and cylindrical plug are fed via vibratory bowl feeders.
• 2. The main drive uses a cam indexer, and the translation mechanism adopts servo modules.
• 3. The equipment is controlled by PLC and operated via a touchscreen.
• 4. The assembly mechanism utilizes servo modules, pneumatic grippers, and other precision pneumatic components.
• 5. After each assembly process, the system checks if the assembly is completed correctly and rejects defective products.

Machine Parameter:

Machine Advantages:

1. Fully Automatic Operation: The base, flat plug and cylindrical plug are automatically fed by vibratory bowl feeders, with the entire process from assembly to discharge automated, greatly reducing labor costs.
2. High Production Efficiency: Achieves a stable output of 900 pieces per hour, meeting the demands of high-volume orders.
3. Precise & Stable Assembly: Equipped with a cam indexer and servo modules, controlled by PLC, ensuring high positioning accuracy and consistent assembly quality.
4. In-line Quality Control: Press-fit inspections are conducted after each process, with automatic rejection of defective parts to avoid batch rework.
5. User-friendly Operation: Features a touchscreen interface for intuitive parameter setup and real-time monitoring, making operation and maintenance simple.
6. Low Noise & Reliable Performance: Operating noise is below 85 dB, suitable for workshop environments with stable and reliable performance.
