This fully automatic water meter impeller assembly machine is designed for high-efficiency production, with a cycle output of 720 pcs/h. It features plug feeding, impeller assembly, press-fitting, pin installation, magnet ring assembly with polarity sorting, and finished product discharging. Built with reliable brands like SMC, Delta, and Panasonic, the machine ensures ±0.02mm precision and stable performance. Its compact footprint (2150×1200×1800 mm) and PLC-controlled workflow make it ideal for large-scale, error-free meter core manufacturing.
Application/Function :
Water Meter Impeller AssemblyEfficiency :
720 PCS/HControl System :
PLCOperator :
1 Person (Refill the material)

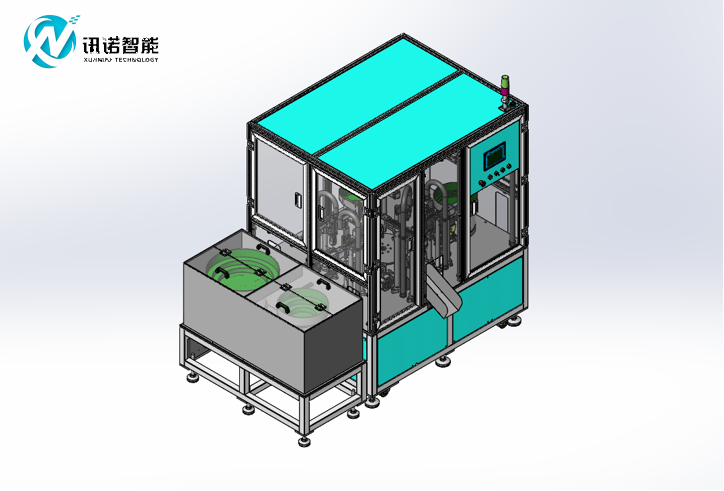

Machine 3D Drawing

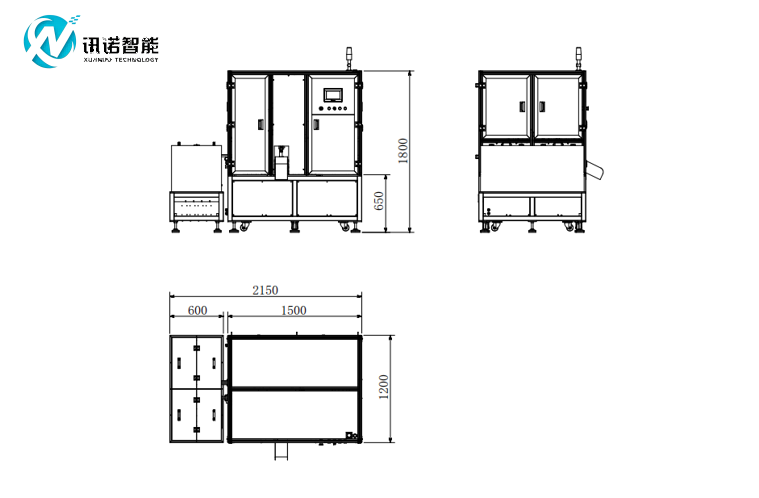

Machine Dimension
Machine Work Flow:
Machine Parameter:
| Item | Specification |
|---|---|
| Overall Dimension (with vibratory feeder) | 2150×1200×1800 mm |
| Operating Noise (excluding vibratory feeder) | Less than 85 dB |
| Power Supply | 220 V |
| Air Pressure | Above 0.6 Mpa |
| Production Efficiency | 720 pcs/H |
Machine Configuration:
| Component Type | Brands |
|---|---|
| Cylinder | Airtac / SMC |
| PLC | Delta |
| Servo Motor | Leadtech / Leadshine / Delta |
| Linear Module | Chuangfeng / Macos |
| Sensor | Panasonic / Jiazhun |
| Speed Control Motor | Zhongda / Yutian |
| CCD Vision System | Hikvision / Dahua / OPT |
| HMI (Touch Screen) | Vico / Weintek |
| Robot | Delta / Yamaha |
Machine Advantages:
This automatic water meter gear shaft assembly machine efficiently completes gear shaft loading, magnetic ring sorting/orientation, press-fitting, and finished product output at 720 pcs/h. It measures 1300×600×1800 mm (including the vibration bowl feeder), operates on 220V power and ≥0.6 MPa air supply, with noise below 85 dB (excluding the feeder). Built with reliable components (AirTAC/SMC cylinders, Delta PLC, Panasonic sensors, etc.), it ensures stable, high-precision assembly for water meter production lines.
This fully automatic water meter impeller assembly machine is designed for high-efficiency production, with a cycle output of 720 pcs/h. It features plug feeding, impeller assembly, press-fitting, pin installation, magnet ring assembly with polarity sorting, and finished product discharging. Built with reliable brands like SMC, Delta, and Panasonic, the machine ensures ±0.02mm precision and stable performance. Its compact footprint (2150×1200×1800 mm) and PLC-controlled workflow make it ideal for large-scale, error-free meter core manufacturing.
This fully automatic water meter plug assembly machine features vibratory bowl feeders for base, flat plug and cylindrical plug loading. Equipped with a cam indexer main drive and servo modules for translation and assembly, it ensures high precision. Controlled by PLC with touchscreen operation, it uses pneumatic grippers and precision components. With a 900 pcs/h output, it verifies assembly quality at each station and rejects defective parts. Operating at 220V, ≥0.6 MPa air pressure, and under 85 dB noise, it delivers reliable, efficient production.
This automatic water meter housing pin assembly machine features vibratory bowl feeders for base housing and positioning pins, servo-driven translation and assembly mechanisms, and precision pneumatic grippers. Controlled by PLC with a touchscreen interface, it ensures reliable operation. Each assembly station includes post-process inspection to reject defective parts, delivering consistent quality. With a compact footprint, low noise, and high efficiency of 720 pcs/h, it runs on 220V power and ≥0.6MPa air supply, ideal for streamlined meter assembly lines.
