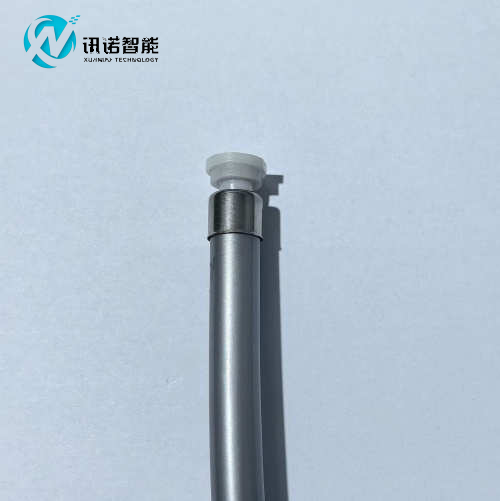

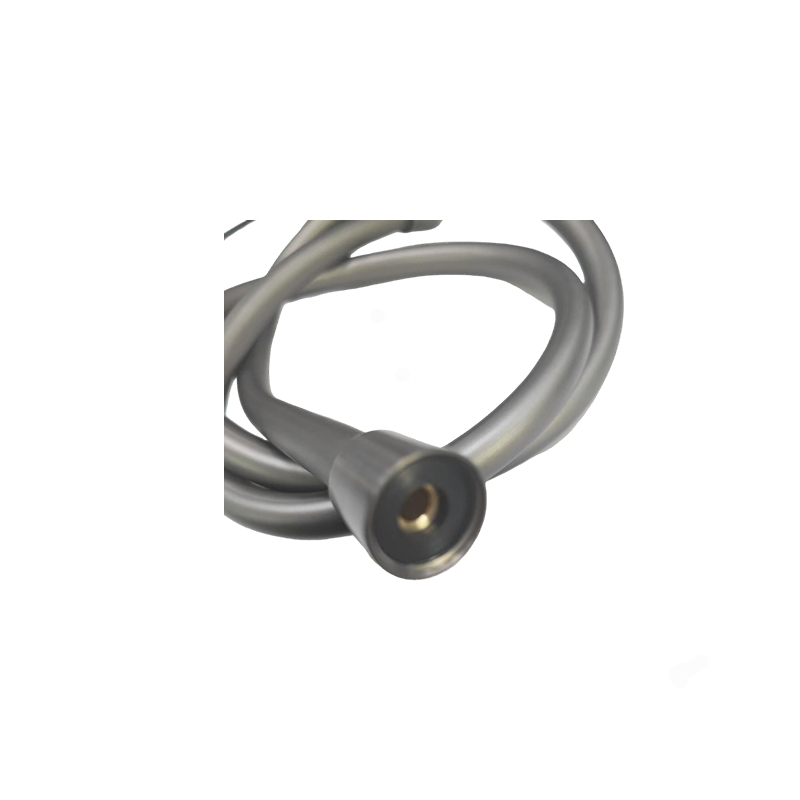

This automatic PVC hose assembly machine features manual U-type feeding for hoses (500-2000mm) and vibratory bowl feeding for ferrules and core rods. It adopts servo modules for translation and crimping, plus moving clamp and high-precision pneumatic components. Controlled by PLC and operated via touch screen, the machine conducts post-assembly inspection at each station and automatically rejects defective products, ensuring stable performance and qualified finished parts.
Application/Function :
Automatic PVC Hosing Assembly MachineEfficiency :
N/AControl System :
PLC (Multiple brands available)Operator :
One operator for multiple machinesCustomizable :
We offer customized equipment for pipe cutting, assembly and other processes for various types of pipes

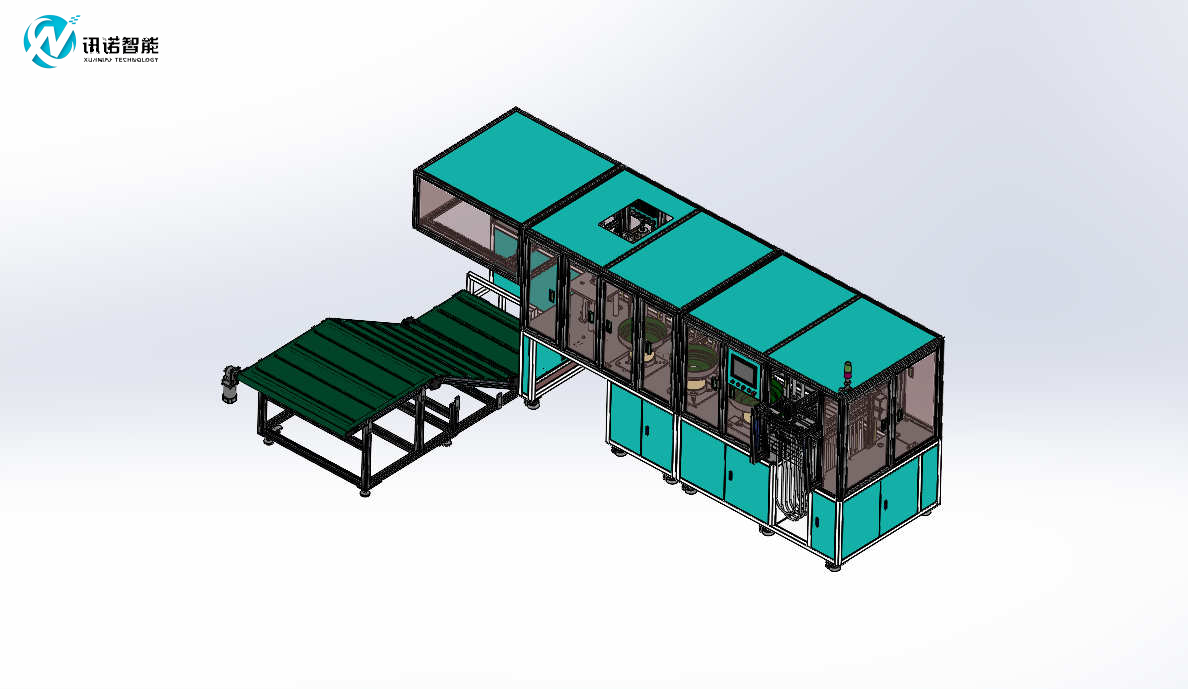

Machine 3D Description

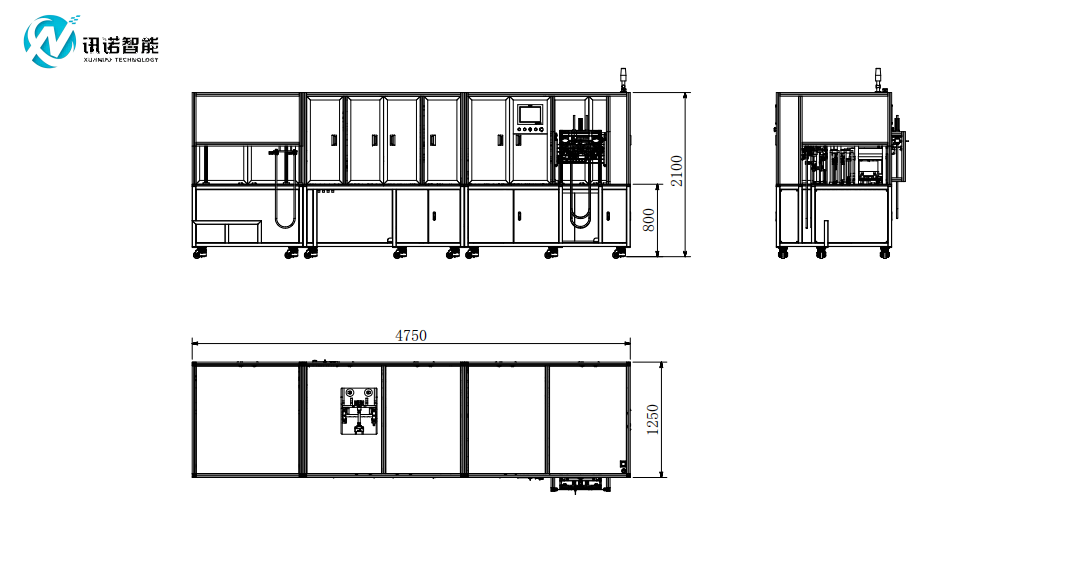

Machine Dimension
| No. | Item | Specification |
|---|---|---|
| 1 | Overall Dimension | 4750×1250×2100 mm (including vibratory bowl, subject to the actual product) |
| 2 | Noise Level | Working noise < 85 dB (excluding vibratory bowl) |
| 3 | Power Supply | 220V, 50 Hz |
| 4 | Air Supply | Air pressure ≥ 0.6 MPa |
| 5 | Equipment Efficiency | 600 pcs/hour |
| No. | Component Name | Brands |
|---|---|---|
| 1 | PLC Control System | Delta |
| 2 | HMI (Human-Machine Interface) | Weinview / Wecon |
| 3 | Pneumatic Components | AirTAC / SMC |
| 4 | Servo Motor | Delta / Rite |
| 5 | Speed Control Motor | Zhongda / Yutian |
| 6 | Linear Modules | Chuangfeng / Maikeosi |
| 7 | Linear Guide & Ball Screw | AirTAC / HIWIN |
| 8 | Sensors | Panasonic / Jai Zhun |
Operators feed steel wire hoses: U-type feeding for 500-2000 mm hoses, single-side assembly for shorter ones. Core rods and nuts are assembled via flexible vibratory feeders, vision system and manipulators for multi-part compatibility. Sleeves are supplied by vibratory feeders. The machine uses moving clamps, servo modules for translation and assembly. Controlled by PLC with touch screen. Equipped with precision pneumatic components. Post-assembly inspection and defective product rejection are available.
This automatic PVC hose assembly machine features manual U-type feeding for hoses (500-2000mm) and vibratory bowl feeding for ferrules and core rods. It adopts servo modules for translation and crimping, plus moving clamp and high-precision pneumatic components. Controlled by PLC and operated via touch screen, the machine conducts post-assembly inspection at each station and automatically rejects defective products, ensuring stable performance and qualified finished parts.
This machine is compatible with plastic and copper inner cores. It adopts PLC control and touch screen for easy operation. The main drive uses a cam index plate for rotary positioning. Its assembly units are equipped with high-precision pneumatic components including pneumatic slides and grippers. Every finished station undergoes quality inspection. Defective products will be automatically rejected to ensure stable product quality and high production efficiency.
This machine is compatible with plastic and copper inner cores. It adopts PLC control and touch screen for easy operation. The main drive uses a cam index plate for rotary positioning. Its assembly units are equipped with high-precision pneumatic components including pneumatic slides and grippers. Every finished station undergoes quality inspection. Defective products will be automatically rejected to ensure stable product quality and high production efficiency.
