This machine is compatible with plastic and copper inner cores. It adopts PLC control and touch screen for easy operation. The main drive uses a cam index plate for rotary positioning. Its assembly units are equipped with high-precision pneumatic components including pneumatic slides and grippers. Every finished station undergoes quality inspection. Defective products will be automatically rejected to ensure stable product quality and high production efficiency.
Application/Function :

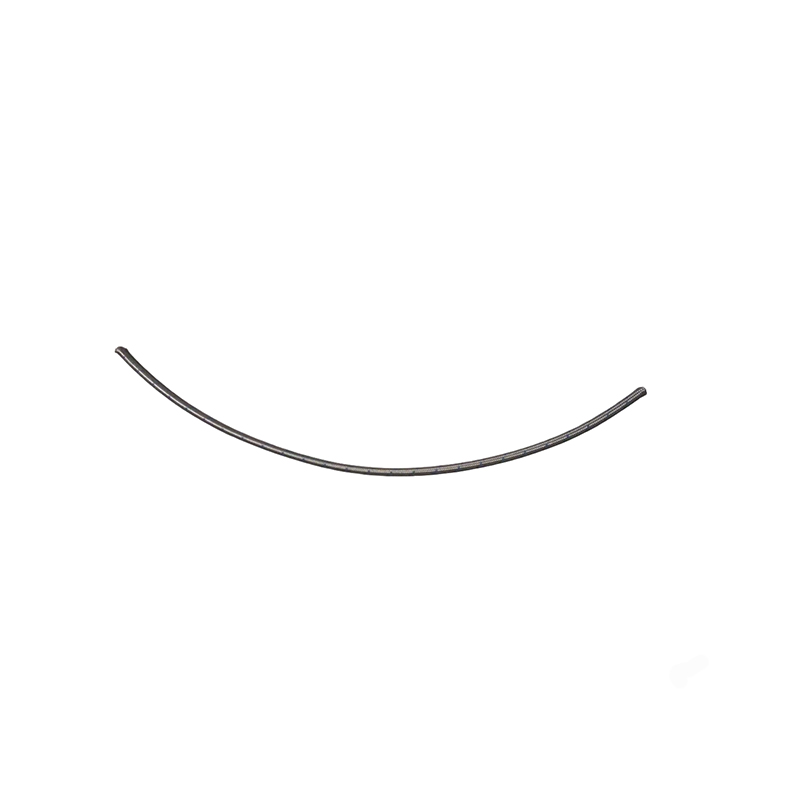

Nylon hose cutting and tape wrappingControl System :
PLC (Optional Brands Available)Operator :
1 Person (Load the hose)Customizable :
We provide customized cutting, assembly and testing machines for different hoses and fittings.

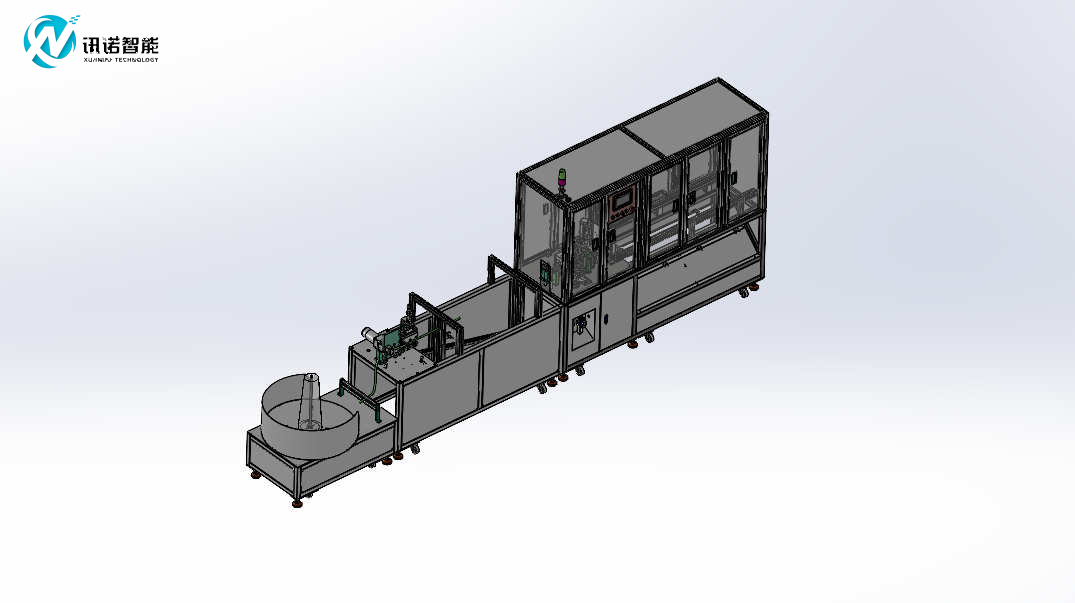

Machine 3D Description

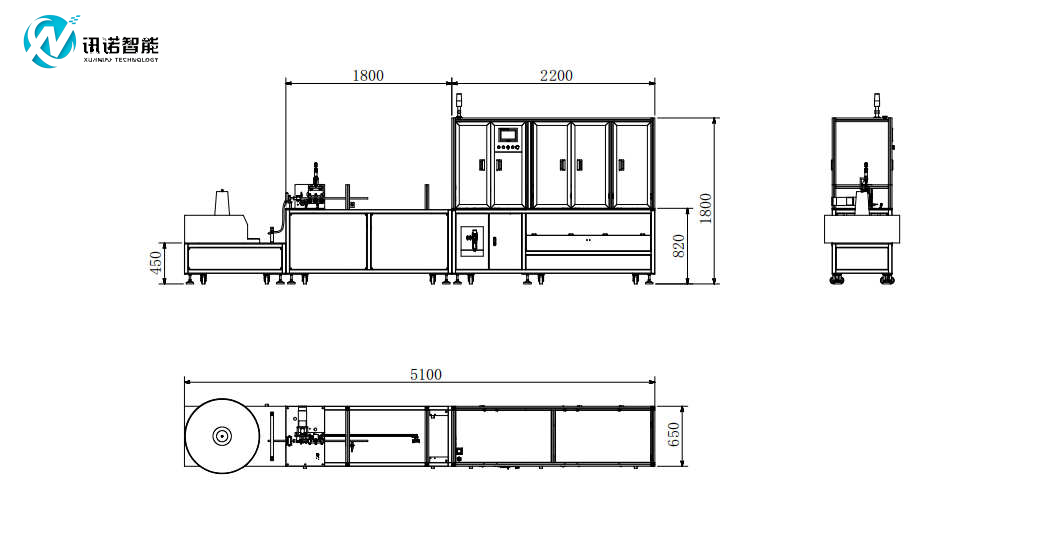

Machine Dimension
Working Process:

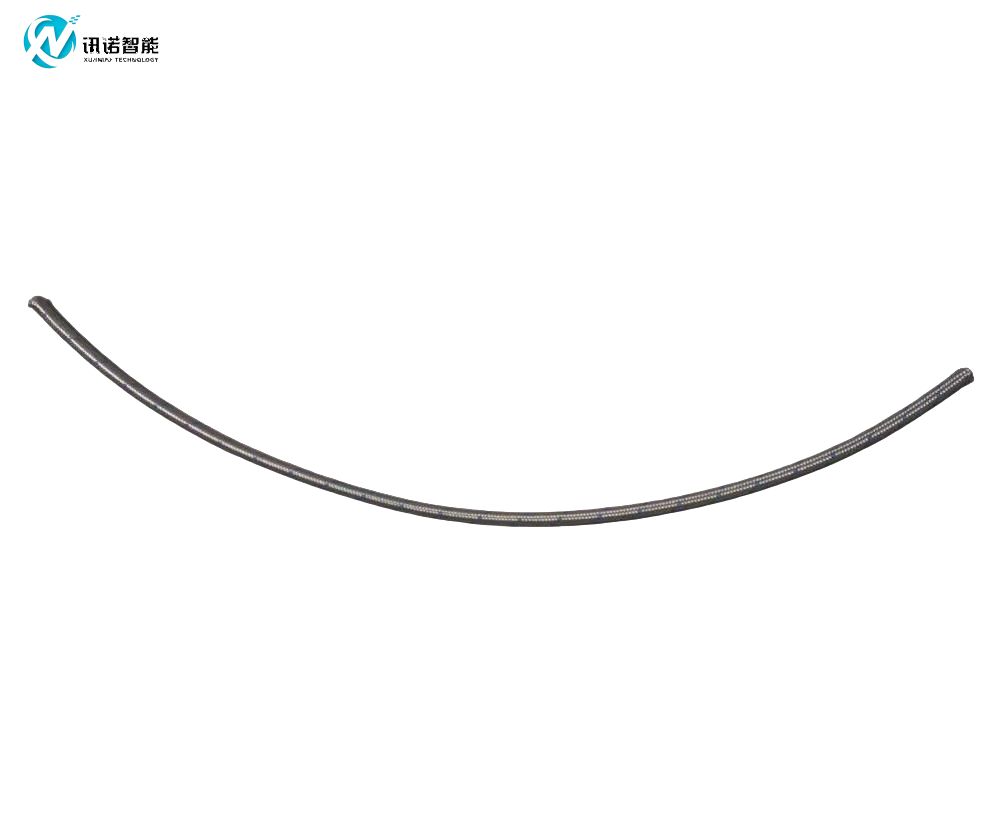

Manual loading of steel wire hose reels → Automatic tube pulling → Tape wrapping on steel wire hose → Automatic pipe cutting → Automatic take-up
Machine Parameters:
| No. | Item | Specification |
|---|---|---|
| 1 | Overall Dimensions | 5100×650×1800 mm (including vibratory feeder, subject to actual product) |
| 2 | Operating Noise | Less than 85 dB (excluding vibratory feeder) |
| 3 | Power Supply | 220 V |
| 4 | Air Pressure | ≥ 0.6 Mpa |
| 5 | Production Efficiency | 500 pcs/H (varies with tube length) |
Machine Configurations:
| No. | Component Name | Brand |
|---|---|---|
| 1 | PLC Control System | Delta |
| 2 | Operator Interface | Weinview / Wecon |
| 3 | Pneumatic Components | Airtac / SMC |
| 4 | Servo Motor | Delta / Leadshine |
| 5 | Speed Control Motor | Zhongda / Yutian |
| 6 | Linear Module | Chuangfeng / Maxcross |
| 7 | Linear Guide & Ball Screw | Airtac / HIWIN |
| 8 | Sensor | Panasonic / Jiazhun |
| 9 | Robotic Arm | Delta / Yamaha |
| 10 | Machine Vision System | Hikvision / Dahua / OPT |
Operators feed steel wire hoses: U-type feeding for 500-2000 mm hoses, single-side assembly for shorter ones. Core rods and nuts are assembled via flexible vibratory feeders, vision system and manipulators for multi-part compatibility. Sleeves are supplied by vibratory feeders. The machine uses moving clamps, servo modules for translation and assembly. Controlled by PLC with touch screen. Equipped with precision pneumatic components. Post-assembly inspection and defective product rejection are available.
This automatic PVC hose assembly machine features manual U-type feeding for hoses (500-2000mm) and vibratory bowl feeding for ferrules and core rods. It adopts servo modules for translation and crimping, plus moving clamp and high-precision pneumatic components. Controlled by PLC and operated via touch screen, the machine conducts post-assembly inspection at each station and automatically rejects defective products, ensuring stable performance and qualified finished parts.
This machine is compatible with plastic and copper inner cores. It adopts PLC control and touch screen for easy operation. The main drive uses a cam index plate for rotary positioning. Its assembly units are equipped with high-precision pneumatic components including pneumatic slides and grippers. Every finished station undergoes quality inspection. Defective products will be automatically rejected to ensure stable product quality and high production efficiency.
This machine is compatible with plastic and copper inner cores. It adopts PLC control and touch screen for easy operation. The main drive uses a cam index plate for rotary positioning. Its assembly units are equipped with high-precision pneumatic components including pneumatic slides and grippers. Every finished station undergoes quality inspection. Defective products will be automatically rejected to ensure stable product quality and high production efficiency.
