Name: Automatic Movement Middle Plate Assembly Machine
Availability: InStock

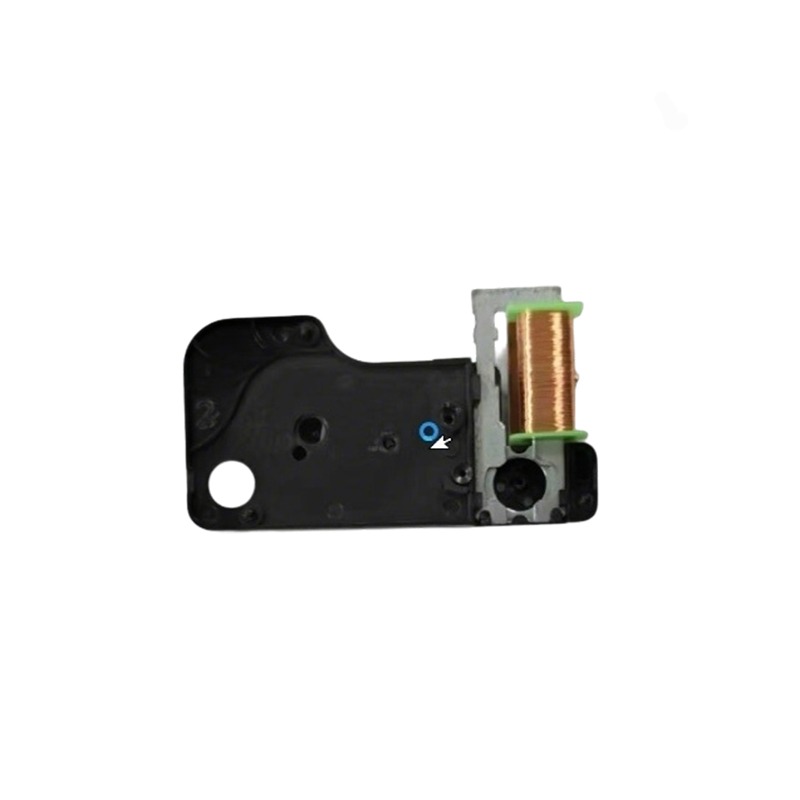

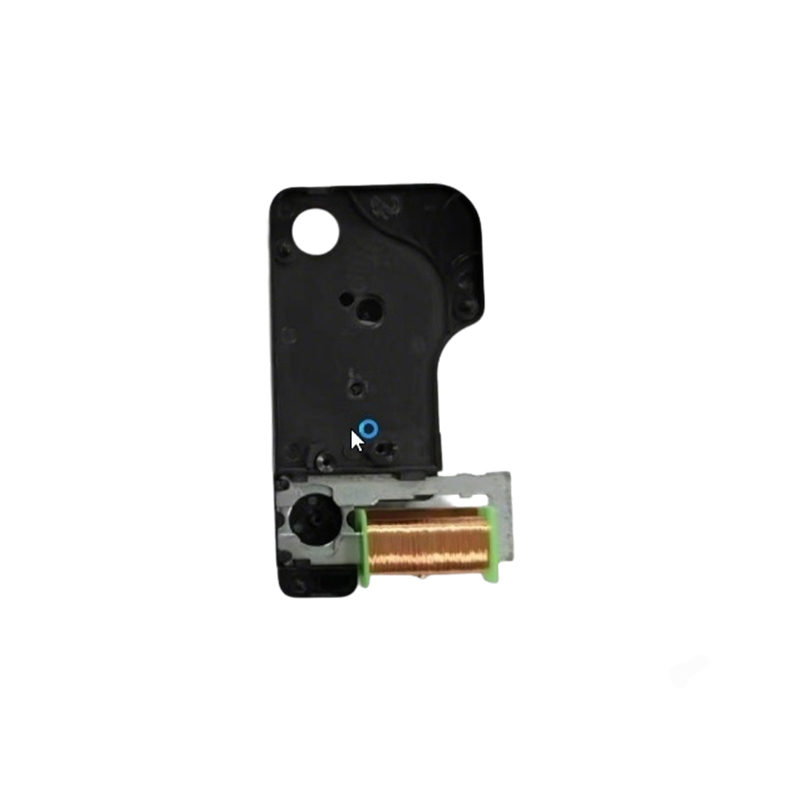

Automatic Movement Middle Plate Assembly Machine

This automated assembly line is designed for clock movement middle plates, integrating feeding, coil loading, position adjustment, oil dispensing, and card assembly. It features automated OK/NG sorting and unloading, ensuring precision and efficiency. Built with reliable pneumatic and servo-driven mechanisms, it delivers consistent quality for high-volume production.

Application/Function :
Automatic Movement Middle Plate Assembly
Efficiency :
1500 PCS/H
Control System :
PLC (Optional Brands Available)
Operator :
One operator can handle multi set machines
Customizable :
We provide customized assembly and testing equipment for individual clock components as well as complete clock assemblies

Inquiry Now

Working Process:

Middle Plate Loading: The movement’s middle plate is fed into the assembly line.
Coil Loading: The electromagnetic coil is loaded onto the middle plate.
Rotary Plate Segmentation Position Adjustment: The rotary indexing table adjusts the position of the separator component.
Middle Plate Oiling: Lubricating oil is dispensed onto the middle plate to ensure smooth gear operation.
Small Card Assembly: The small contact/retention card is assembled onto the plate.
Large Card Assembly: The large contact/retention card is installed.
Good/Defective Product Inspection (NG / OK Sorting): The system performs quality inspection to separate good (OK) and defective (NG) units.
Unloading: Finished units are unloaded from the line, with rejected parts diverted for rework.

Machine Parameters:

No.	Specification Item	Parameter
1	Overall Dimensions	12500 × 1500 × 1800 mm (L×W×H), working height: 750–800 mm
2	Equipment Efficiency	1500 pcs/h
3	Noise Level	Operating noise < 85 dB
4	Power Supply Voltage	220 V
5	Air Supply Pressure	0.5–0.6 MPa
