Name: Automatic Clock Movement Assembly Line
Availability: InStock

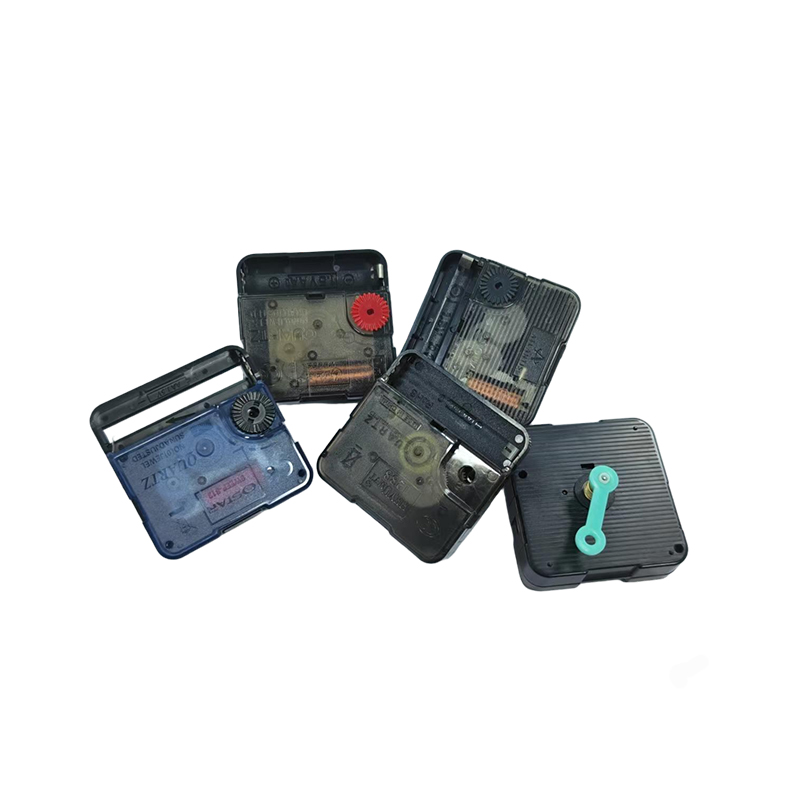

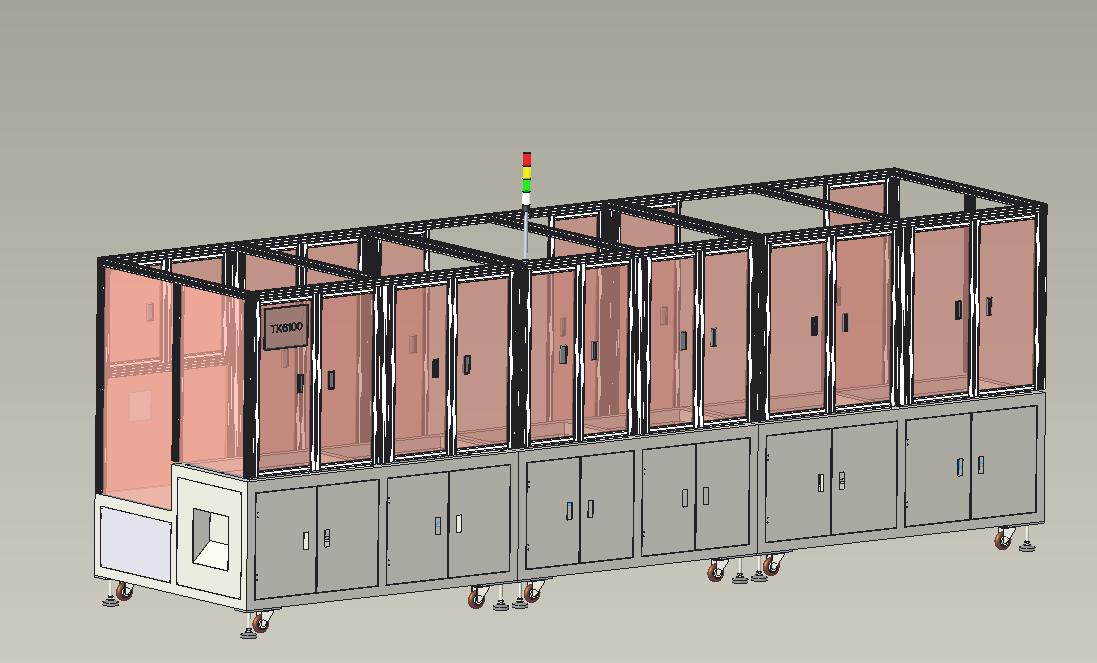

Machine 3D Drawing

Machine Description:

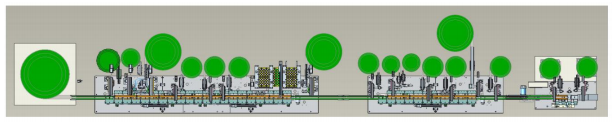

1. The complete assembly line consists of 3 interconnected units, linked by conveyors to transfer products to the next station. A dedicated rework line for defective parts is included to facilitate maintenance.
2. The first two units use high-precision ring guides for fixture transfer, while the third uses fork-style transfer. Servo modules handle all horizontal pick-and-place movements for loading/unloading.
3. Coil frames are manually stacked in trays for feeding. Custom-molded positioning trays, manufactured to your specifications, are used for intermediate transfer and feeding.
4. All horizontal pick-and-place movements are driven by linear modules. Vertical movements at the minute wheel pipe, second shaft, test minute hand, and test second hand stations also use modules, while vertical movements at all other stations are driven by pneumatic cylinders.

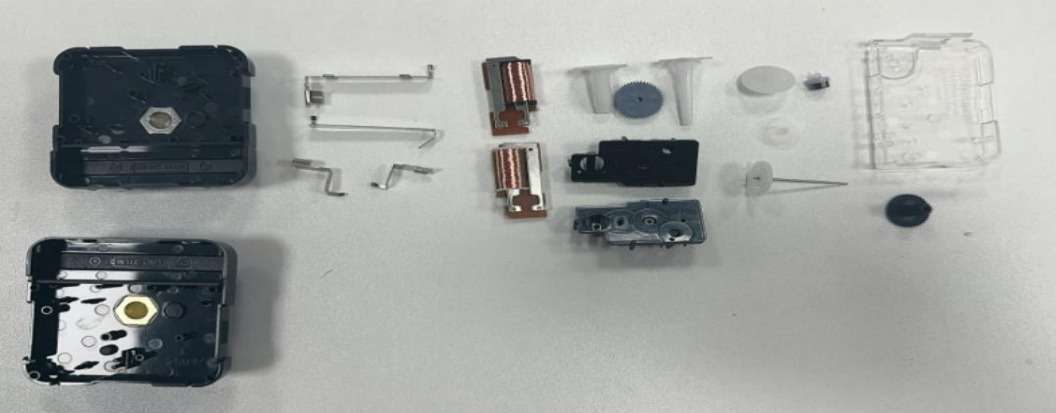

Working Process:

Stage	Process Step	Description
1	Cyclic Indexing Operation	The main assembly platform operates with a cyclic indexing mechanism to transfer components between stations.
2	Base Feeding & Positioning	The movement base is fed and precisely positioned as the foundational component.
3	Copper Terminal Feeding & Assembly	The copper contact terminal is automatically fed and assembled onto the base.
4	Positive Terminal Feeding & Assembly	The positive electrode terminal is installed onto the base.
5	Negative Terminal Feeding & Assembly	The negative electrode terminal is installed to complete the power contact assembly.
6	Coil Frame Tray Feeding & Assembly	The coil frame is fed via tray loading and assembled into the movement.
7	Hour Wheel Feeding & Assembly	The hour wheel component is fed and installed into the movement gear train.
8	Hour Band Feeding & Assembly	The hour gear band is assembled onto the hour wheel.
9	Minute Wheel Feeding & Assembly	The minute wheel is fed and installed into the gear train.
10	Middle Plate Feeding & Assembly	The movement middle plate is positioned and assembled to secure the gear train.
11	Upper Escape Wheel Feeding & Assembly	The upper escape wheel is fed and assembled into the movement.
12	Motor Wheel Magnet Feeding & Assembly	The motor wheel and its magnetic component are fed and assembled.
13	Second Band Feeding & Assembly	The second gear band is installed onto the second wheel.
14	Second Wheel Feeding & Assembly	The second wheel component is fed and assembled into the gear train.
15	Back Cover Wheel Feeding & Assembly	The back cover gear component is fed and installed.
16	Hand Setting Wheel Feeding & Assembly	The hand setting wheel for time adjustment is assembled.
17	Test Minute Hand Feeding & Assembly	The test minute hand is installed for functional validation.
18	Test Second Hand Feeding & Assembly	The test second hand is installed for functional validation.
19	Finished Product Unloading	The fully assembled and tested clock movement is unloaded from the line.

Machine Parameters:

No.	Specification Item	Parameter
1	Overall Dimensions	12500 × 1500 × 1800 mm (L×W×H), working height: 750–800 mm
2	Equipment Efficiency	1500 pcs/h
3	Noise Level	Operating noise < 85 dB
4	Power Supply Voltage	220 V
5	Air Supply Pressure	0.5–0.6 MPa
