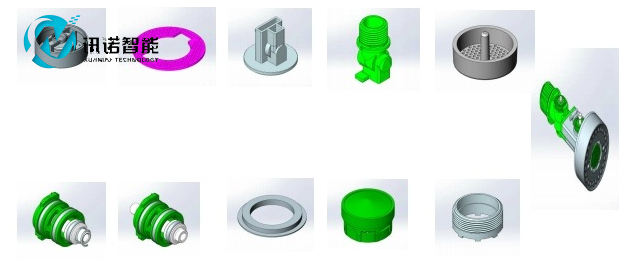

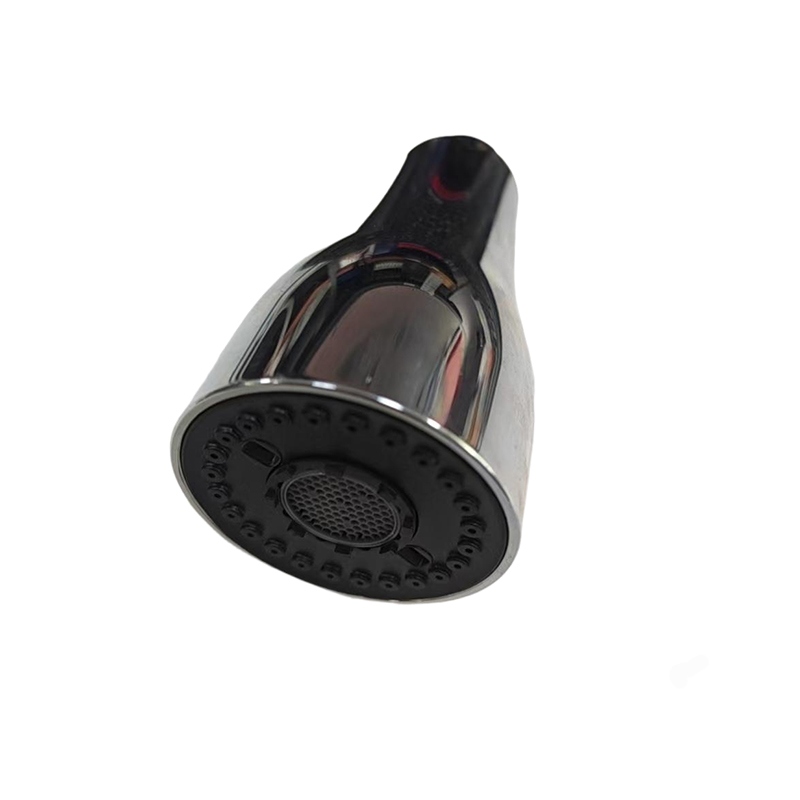

This automatic assembly machine is designed for pull-out sprayer nozzles, supporting 2 types of water outlet heads and filter screens, with visual positioning for material picking. It features a cam indexer + rotary table drive system, vibratory bowl feeders for all components, PLC control with touchscreen operation, and precision pneumatic components including manipulators, rotary cylinders, and pneumatic grippers, ensuring stable, high-precision assembly for faucet spray heads.
Application/Function :
Automatic Pull-out Head AssemblyEfficiency :
500 PCS/HControl System :
PLC (Multiple brands available)Operator :
One operator for multiple machinesCustomizable :
We provide customized assembly and testing machines for various shower components and accessories

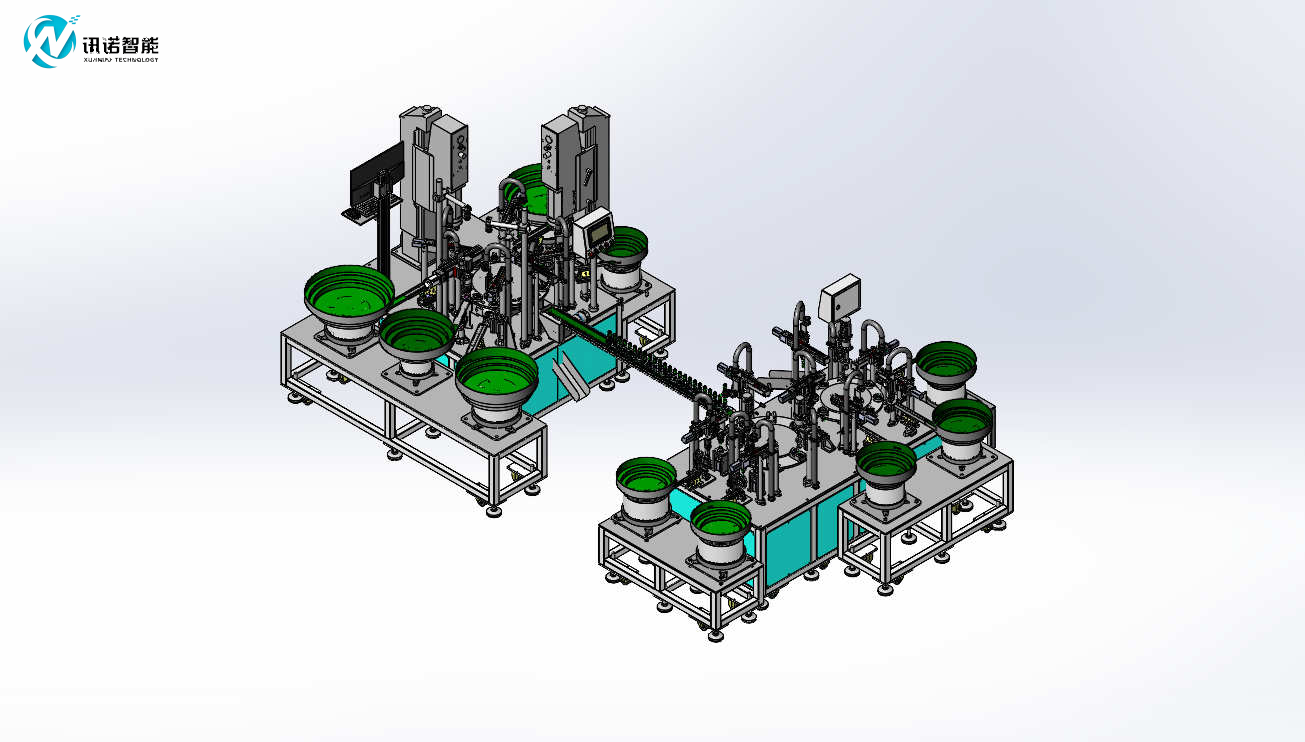

Machine 3D Drawing

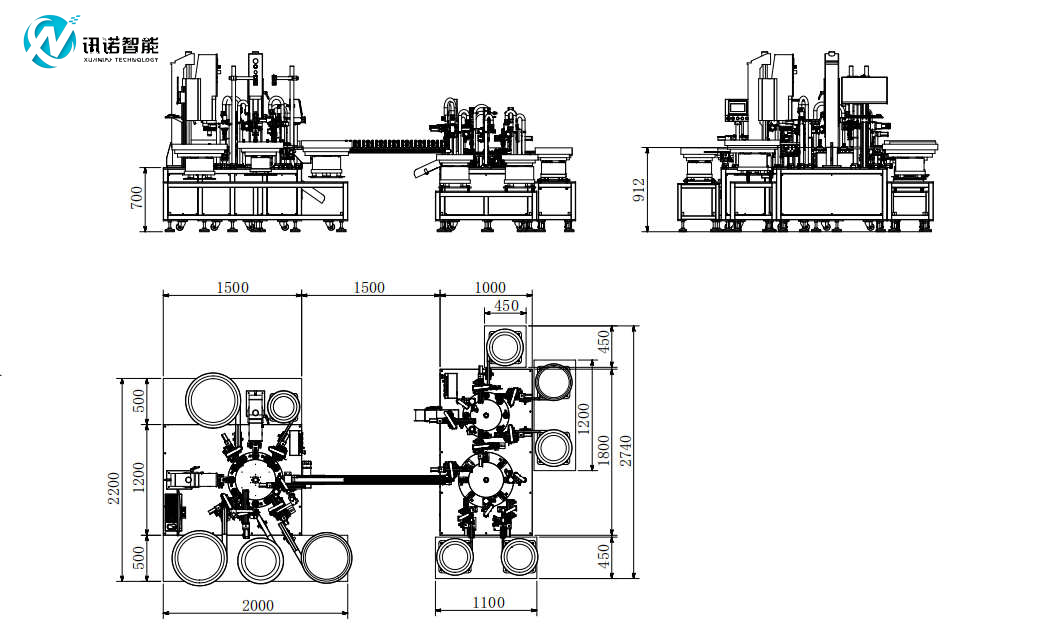

Machine Dimension
Machine Parameter:
| No. | Item | Specification |
|---|---|---|
| 1 | Overall Dimensions | 1. L 1500 × W 2200 × H 1600 mm (subject to actual product)
|
| 2 | Noise Level | Operating noise < 85 dB |
| 3 | Power Supply | Voltage: 220V, Power: 3 kW |
| 4 | Air Source | Air pressure ≥ 0.5 MPa, Air consumption ≈ 100 L/min |
| 5 | Production Efficiency | 500 pcs/h (pieces per hour) |
Machine Configuration:
| No. | Component Name | Brand(s) |
|---|---|---|
| 1 | PLC Control System | Delta |
| 2 | HMI (Operator Interface) | Weinview / Vekon |
| 3 | Pneumatic Components | Airtac |
| 4 | Motor | Delta / Ruite |
| 5 | Linear Guide & Screw | Airtac / HIWIN |
| 6 | Sensors | Panasonic / Jai Zhun |
| 7 | Push button Switches | Chint / Schneider |
| 8 | Vision System | In-house developed |
| 9 | Manipulator | Delta |
This automatic aerator assembly machine is designed for efficient, consistent assembly of faucet aerator components. The modular process includes shared stations for outlet mesh and filter mesh assembly, plus optional stations for filter screen, housing/mounting seat, and water diverter assembly. Controlled by PLC with a touchscreen interface, it ensures stable operation and easy parameter adjustment. Each step guarantees precise component fitting, reducing manual labor and error rates. It supports flexible configuration to meet different product specifications, delivering reliable finished product output for high-volume production lines.
This automatic assembly machine features fully automatic vibratory bowl feeding, PLC control, and HMI touchscreen operation. It uses precision pneumatic components like slides and grippers for stable assembly. Each station includes post-assembly inspection to confirm proper fitting, with non-conforming parts automatically rejected. Designed for high efficiency, low maintenance, and consistent quality, it is ideal for mass production in hardware, sanitary ware, and rubber component industries.
This fully automatic shower head assembly machine integrates multi-station turntable technology and robotic vision for streamlined production. It supports 6 face cover variants and 2 ball plunger types, with automatic feeding, assembly, welding, and inspection for all components. Every process includes quality checks to eliminate defects, while vision-guided positioning ensures precise assembly. Compatible with multiple models, it delivers high efficiency, consistent quality, and minimal manual intervention for mass production.
This shower head automatic assembly & welding machine uses vibratory bowl feeders for parts supply, servo-driven ultrasonic welding, and 4-axis robotic arms with visual positioning for shower body loading. It adopts cam indexers and servo modules for motion control, PLC & touchscreen operation, visual alignment, precision pneumatic components, and post-assembly testing with defective part rejection, ensuring efficient, reliable production.
This automatic assembly machine is controlled by PLC with HMI touchscreen operation. It adopts high-precision pneumatic components such as pneumatic slides and grippers for assembly. Each process is followed by pass/fail inspection to detect assembly quality, with defective products automatically rejected. The system ensures stable, efficient, and reliable production with low maintenance and easy operation.
This automatic slide assembly machine is PLC-controlled with HMI operation for easy use. It uses 4-axis manipulators, servo modules, and pneumatic grippers for precision assembly, with a precision vibratory feeder for feeding. Post-assembly inspection ensures defective parts are rejected. Equipped with 2 Delta 4-axis manipulators and 6 Panasonic/Hikvision vision systems, it delivers stable, high-quality assembly. With a footprint of 8000×1800×1800 mm, it runs on 220V power and ≥0.5 MPa air pressure, achieving 400–500 parts/hour with noise below 85 dB (excluding the feeder).
This machine is designed for air tightness testing of Ø10 check valves. It features PLC control with touchscreen operation for intuitive use. The main drive uses a cam index dial for stable rotation, while assembly mechanisms utilize servo modules, pneumatic slides, and grippers. High-precision vibratory feeders ensure consistent feeding, and defective products are automatically rejected. The equipment delivers reliable, high-throughput testing with minimal operator intervention.
This automatic assembly line is specifically designed for the check valve. It features PLC control and touchscreen operation for user-friendly control. The main drive uses a cam index dial for stable rotation, while assembly mechanisms adopt precision pneumatic components like slides and grippers. Each station includes post-assembly inspection to verify proper fitting and automatically rejects defective products, ensuring high-quality output.
